Linear Unit MTV 80

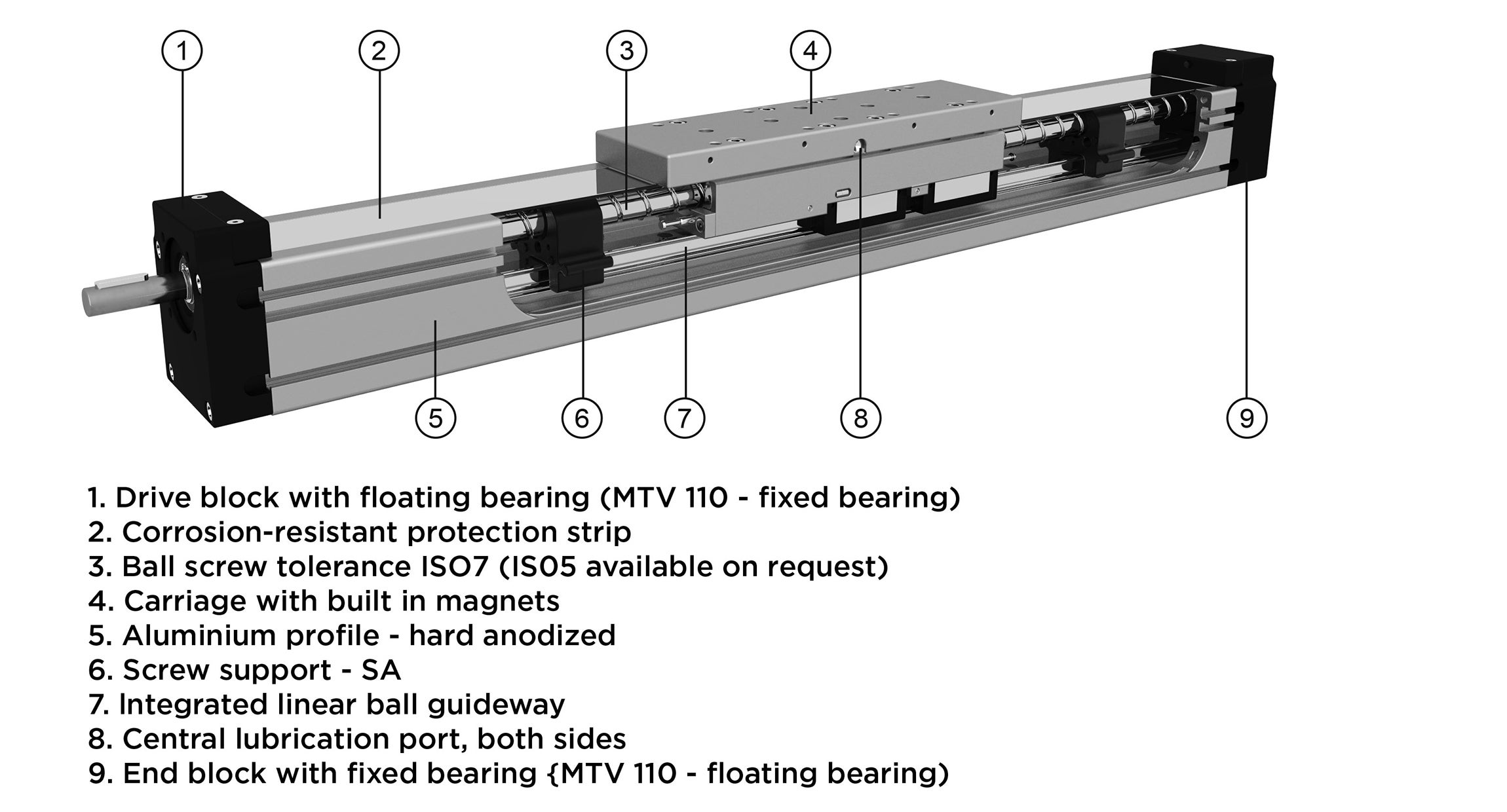

The MTV series describes linear units with precision ball screw drive, integrated guide rail and compact dimensions. The units use a precision ball screw, with tolerance class ISO7 (ISO5 on request), with reduced backlash of the ball nut. A corrosion-resistant protection strip, protects all the parts in the profile from dust and other contaminants.

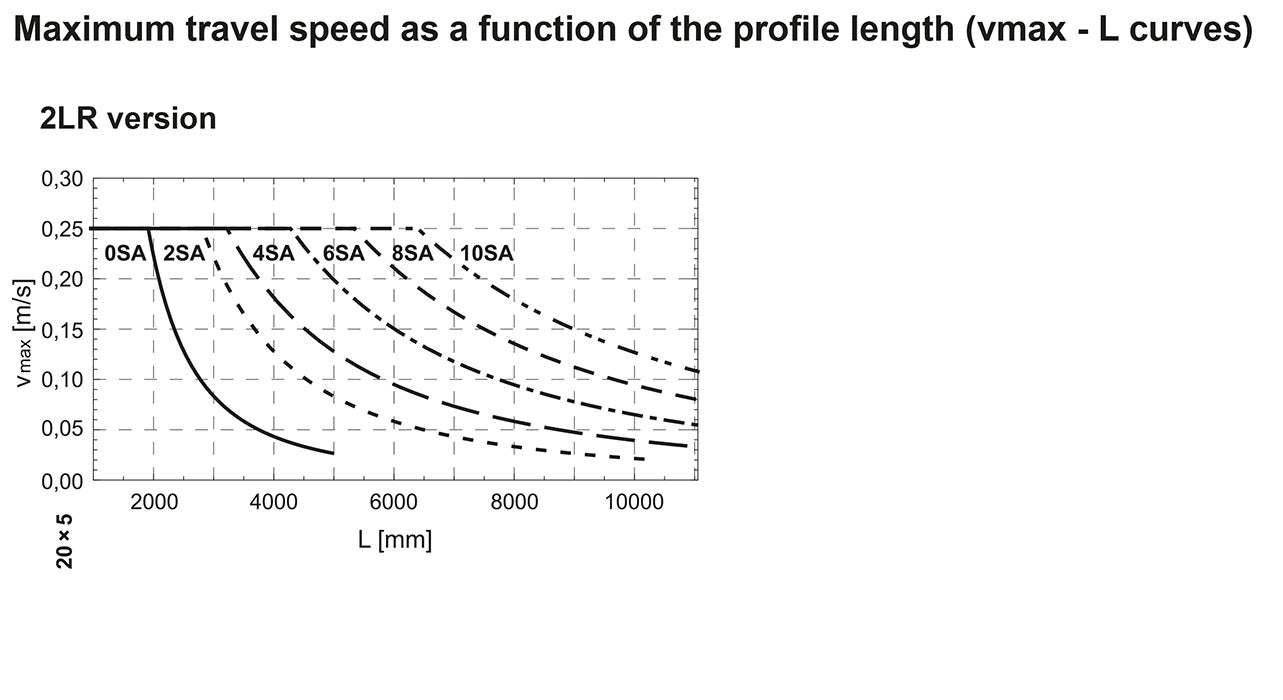

To achieve higher speeds at the same stroke of the linear unit, the ball screw support system can be integrated. With this feature vibrations and deflections of the ball screw are reduced, therefore longer strokes are possible. The linear unit with integrated support system can have a higher axial load capacity. Ball screw supports are made of high quality plastic materials with high wear resistance properties. The system enables ball screw support in horizontal or vertical positioning of the linear unit.

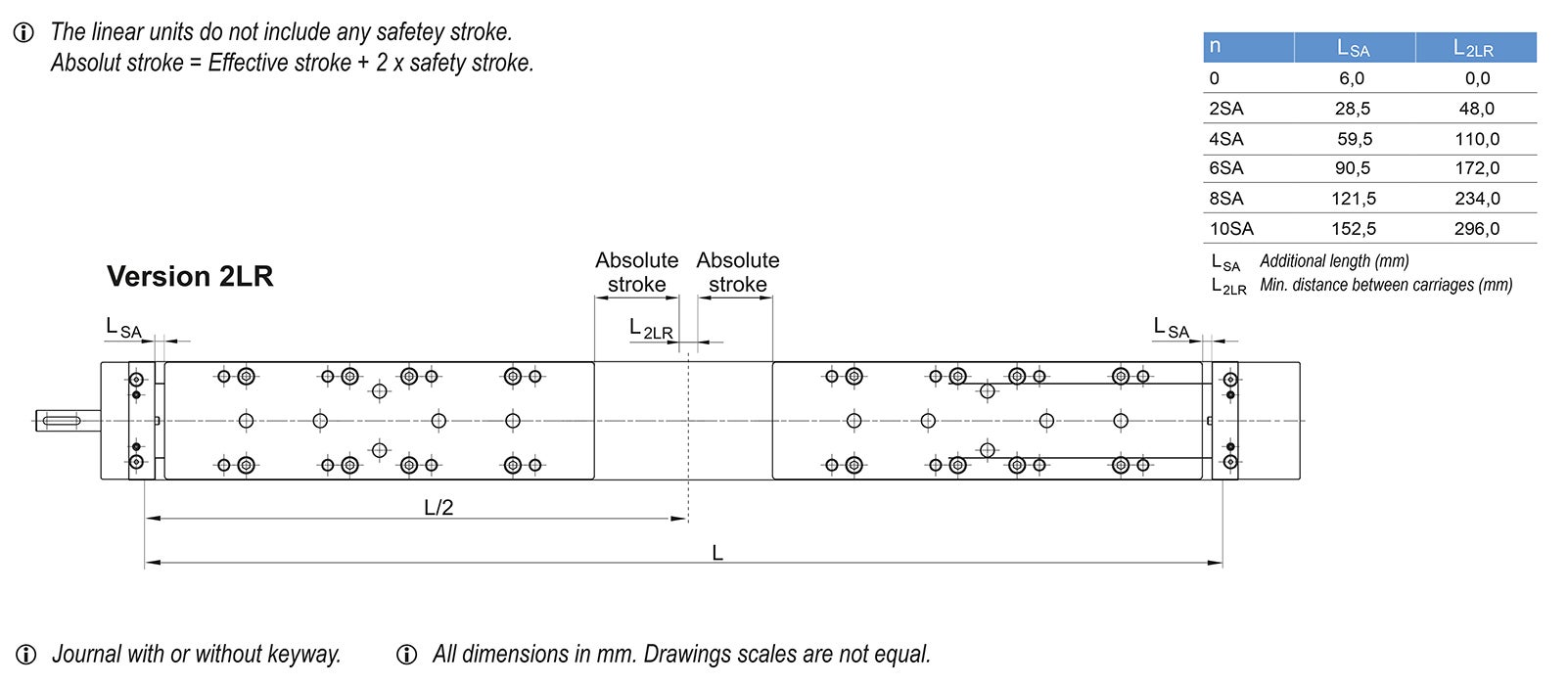

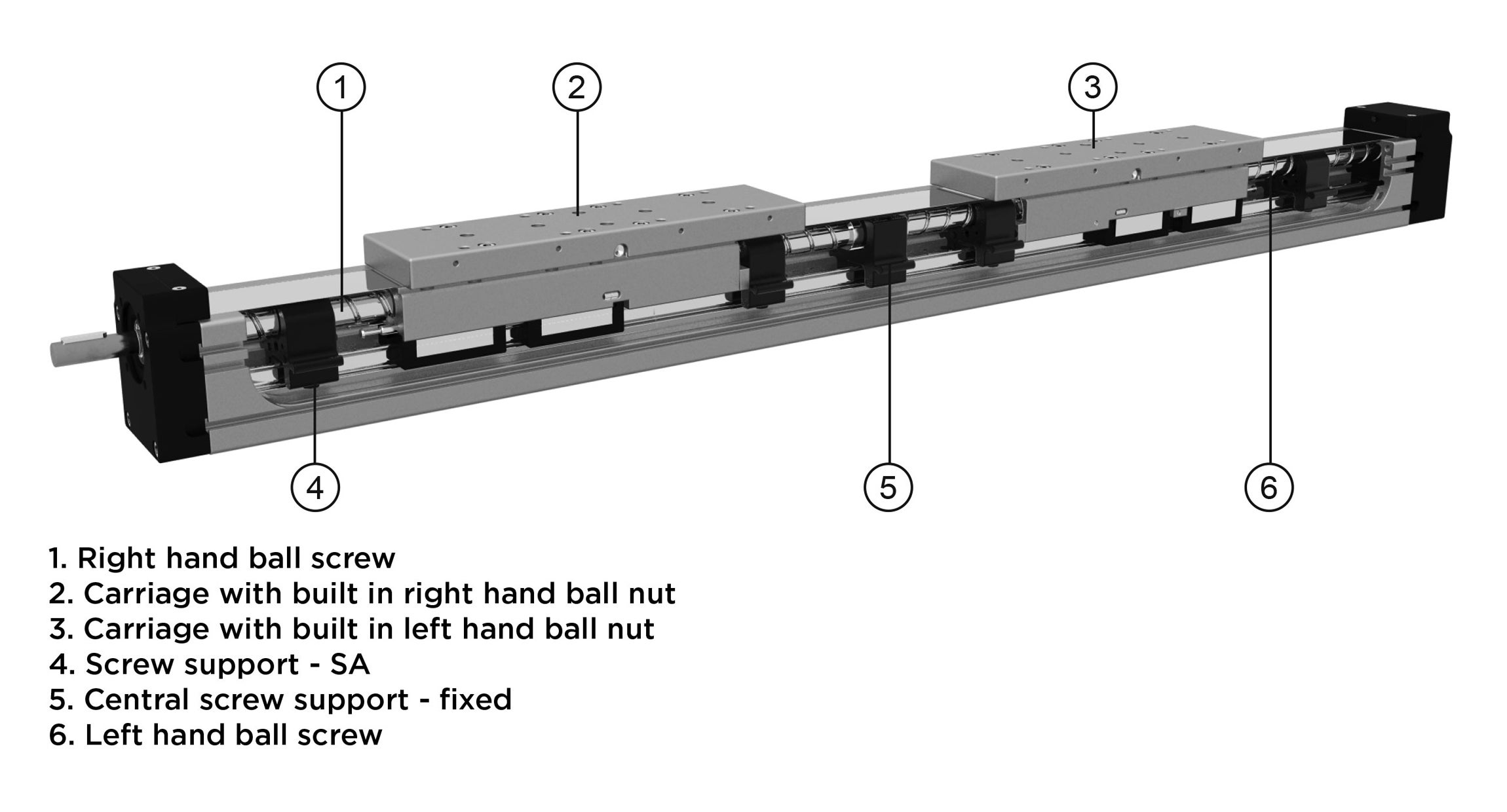

A 2LR version of MTV linear unit is available, where two carriages are moving simultaneously in opposite directions. Both right- and left-handed precision ball screws are used, which are rigidly connected. The ball screw support system can also be integrated.

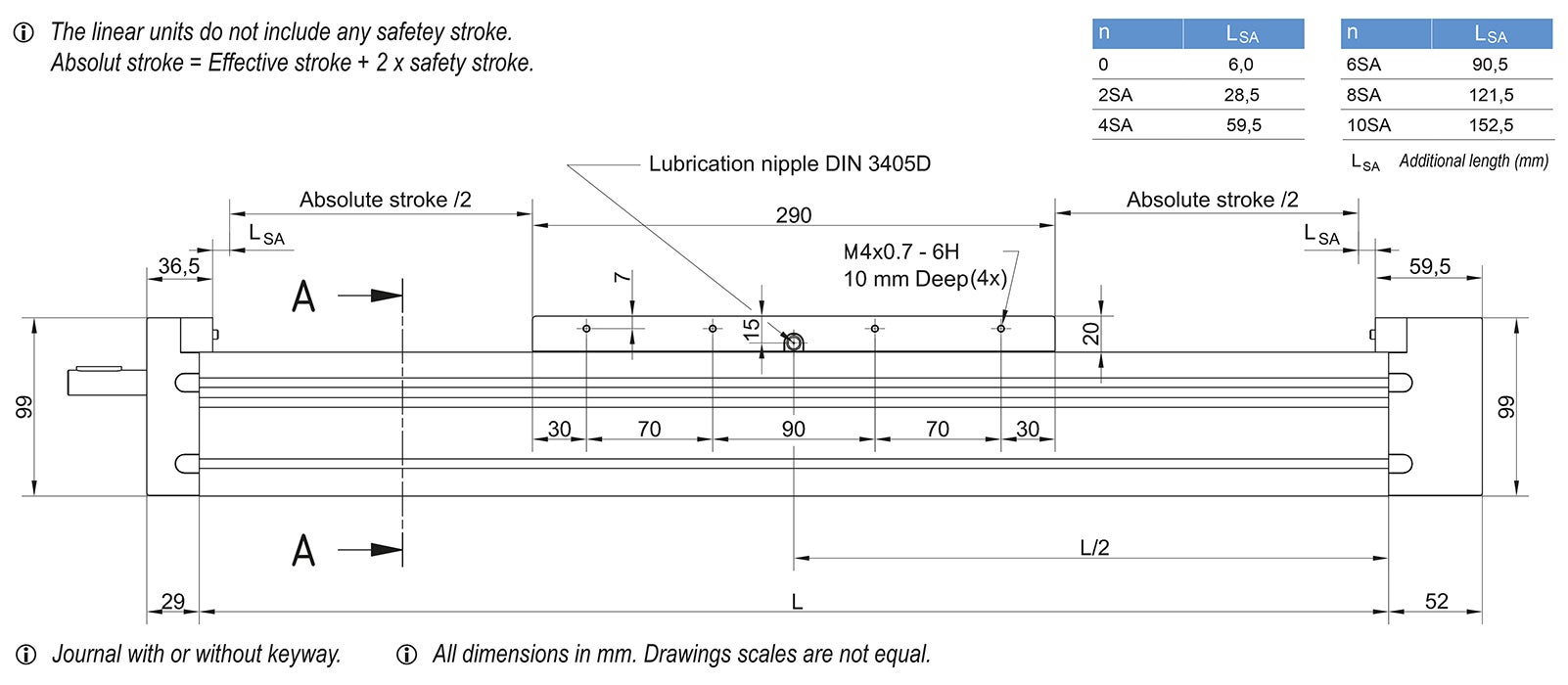

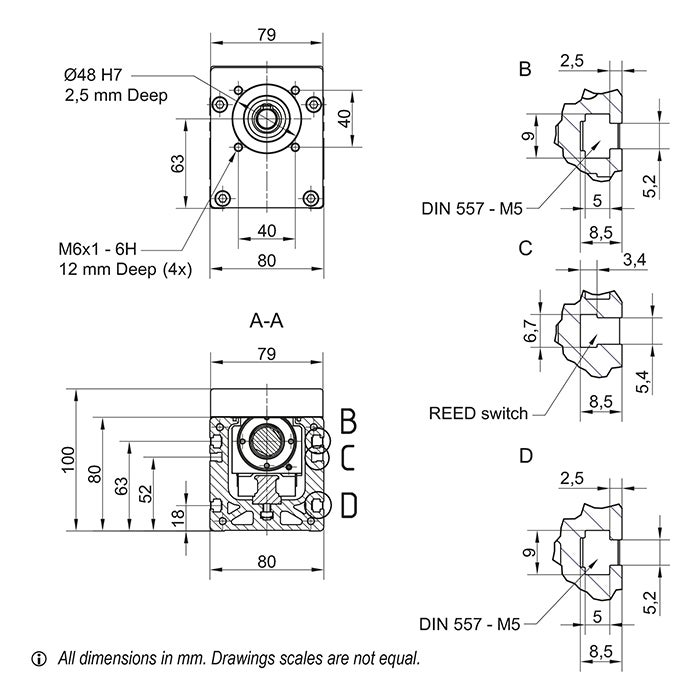

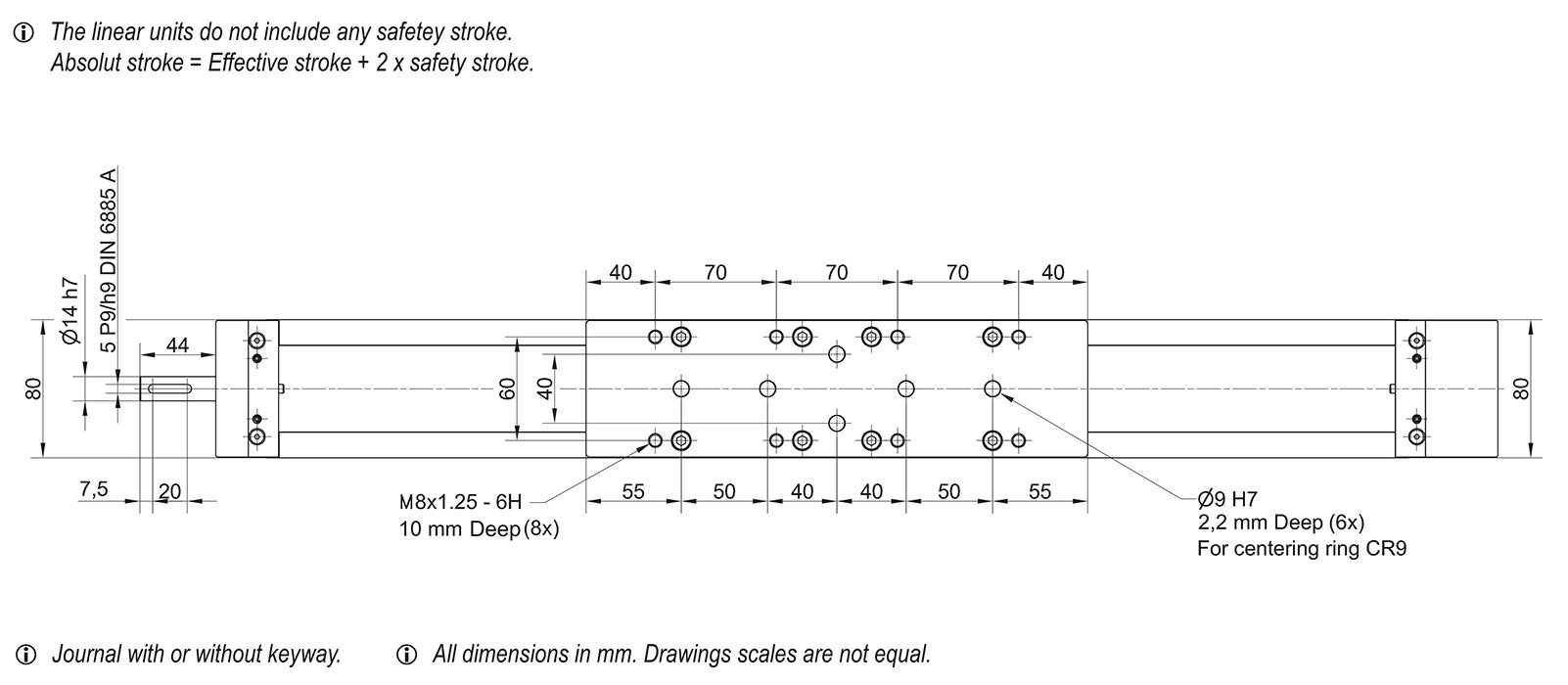

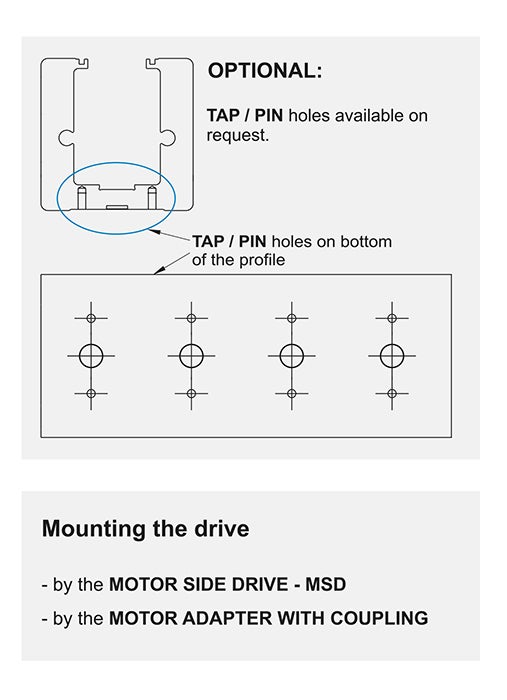

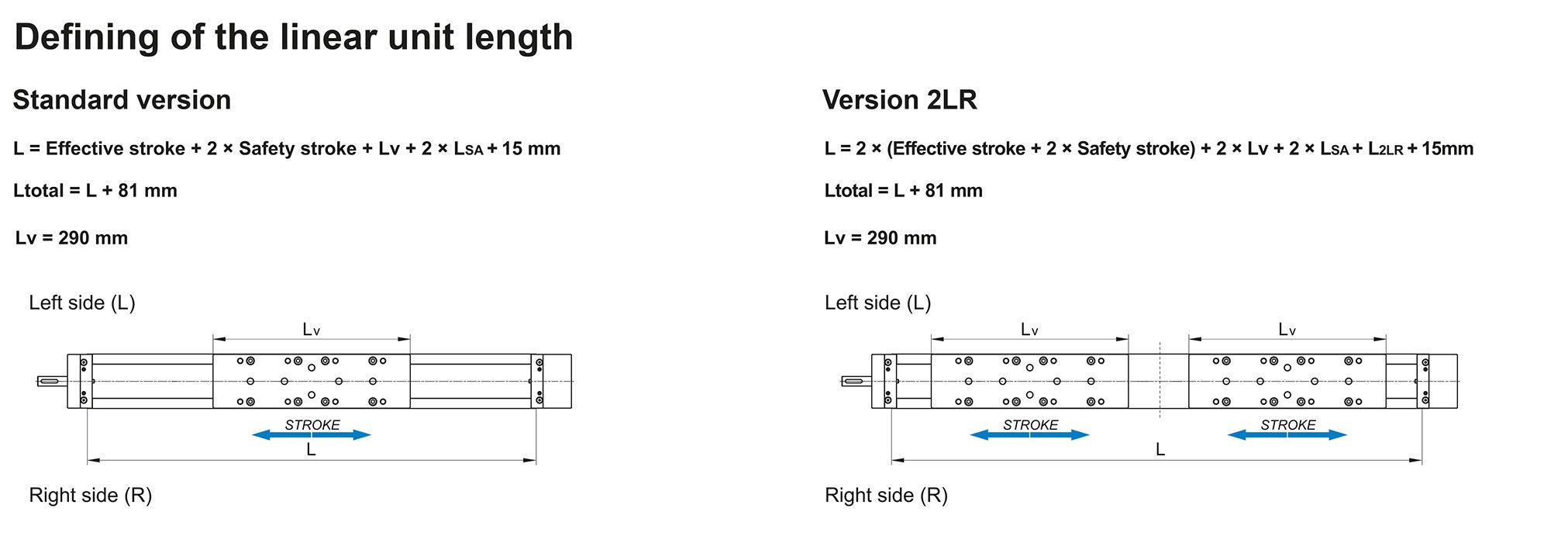

Dimensions in mm.
Read more

Product Information

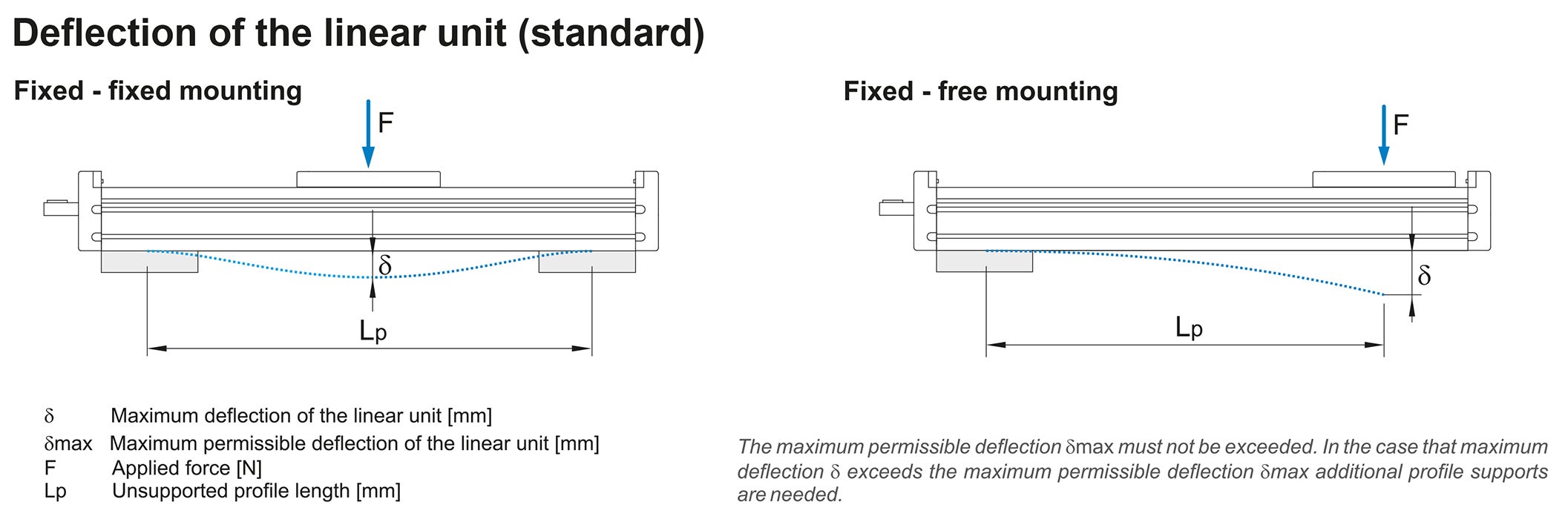

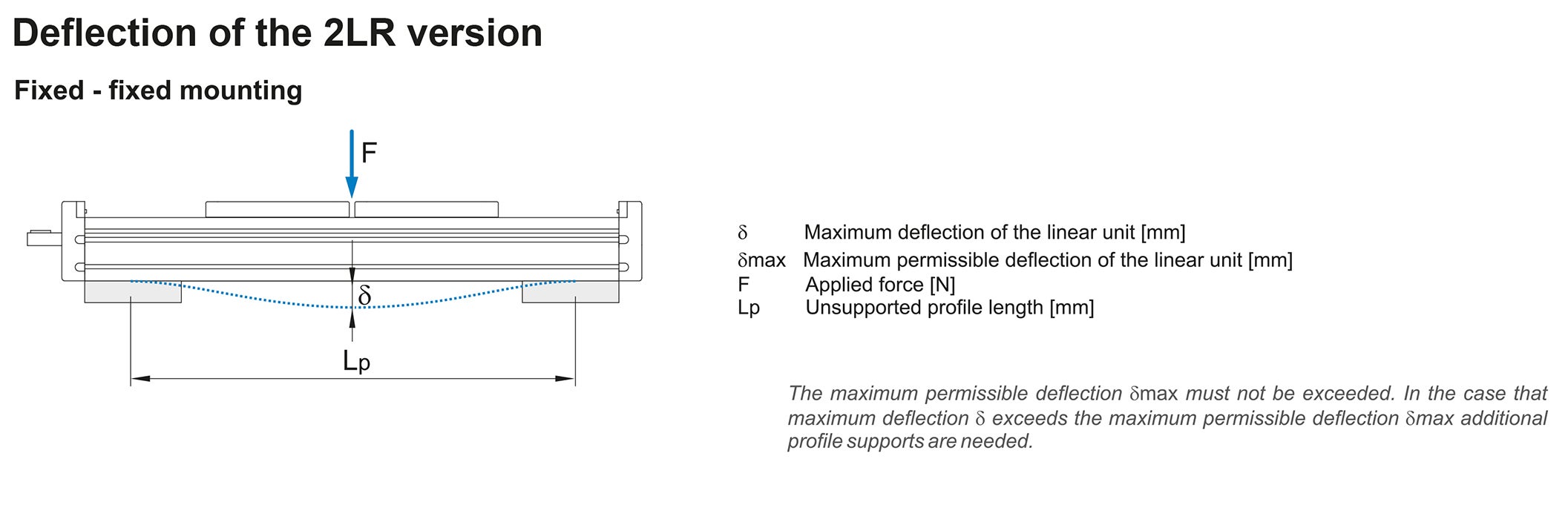

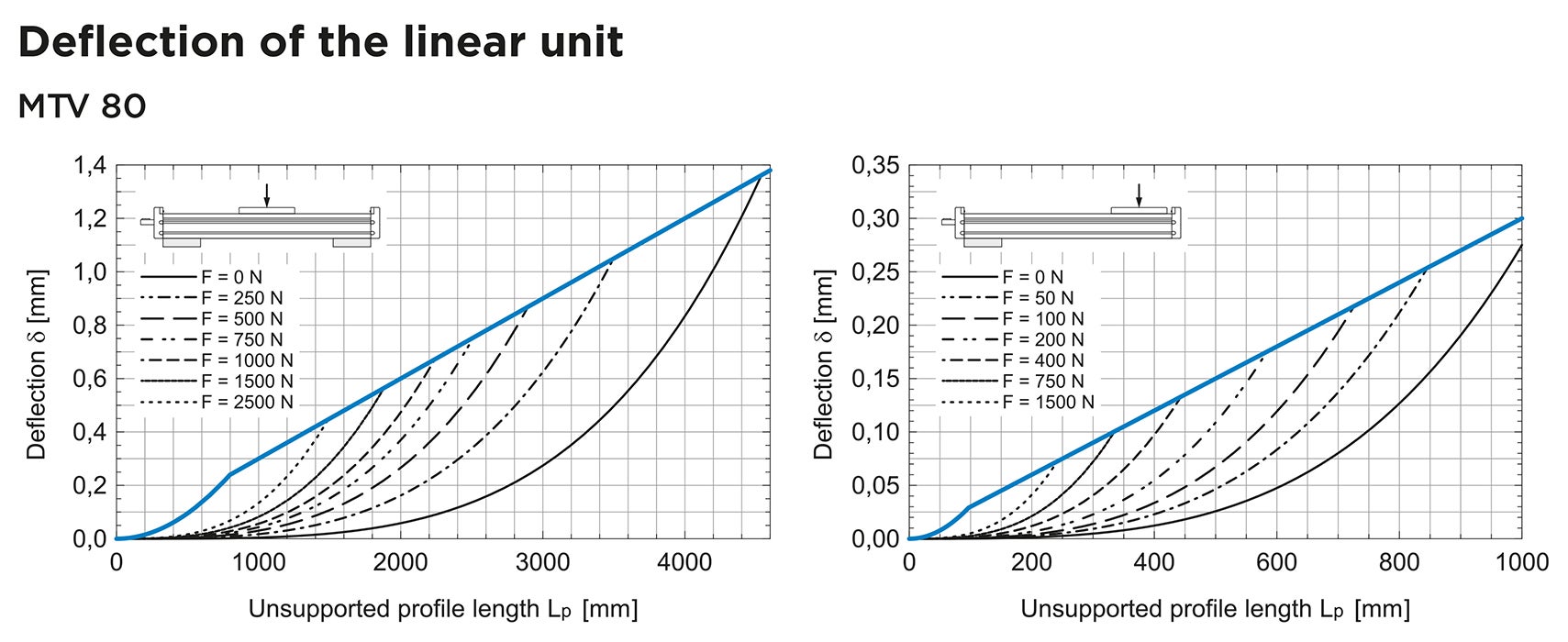

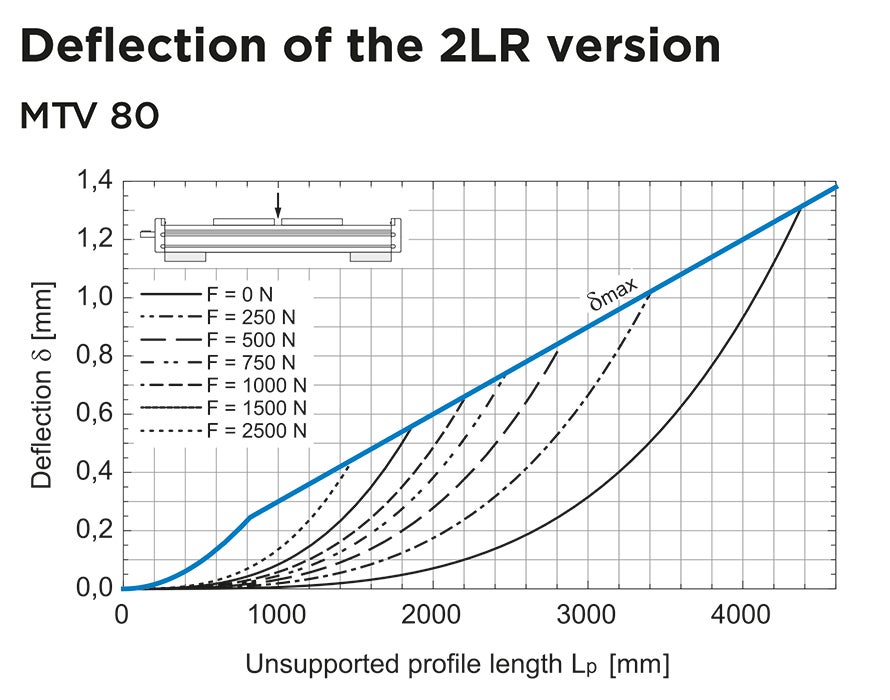

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 20
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD

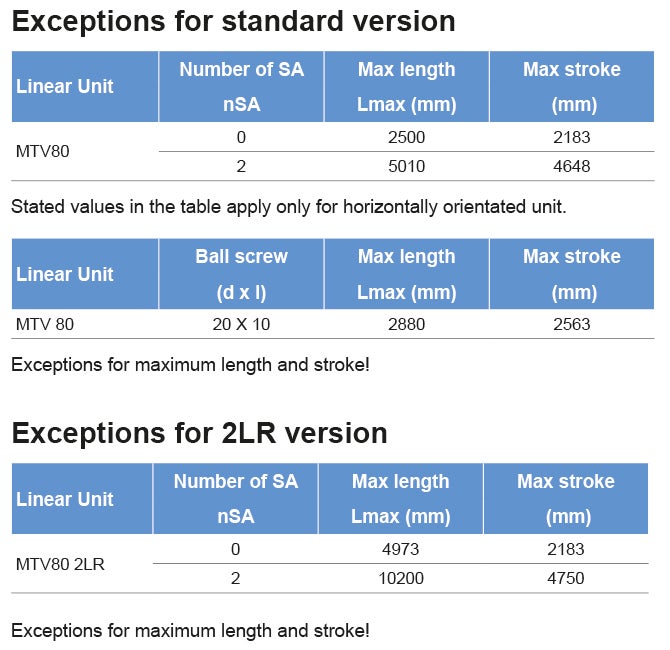

Designation Select all CAD Compare Get quote Lead Time * Carriage Length Lv (mm) Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Max. Length Lmax (mm) Max. Stroke (mm) Min. Stroke (mm)
Get quote 2 290 34200 60000 370 1470 1470 8930 15070 500 384 5480 5163 55
Get quote 2 290 34200 60000 370 1470 1470 8930 15070 500 384 11055 5224 55
Get quote 2 290 34200 60000 370 1470 1470 8930 15070 500 384 5480 5163 55
Get quote 2 290 34200 60000 370 1470 1470 8930 15070 500 384 5480 5163 55
Get quote 2 290 34200 60000 370 1470 1470 8930 15070 500 384 5480 5163 55

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

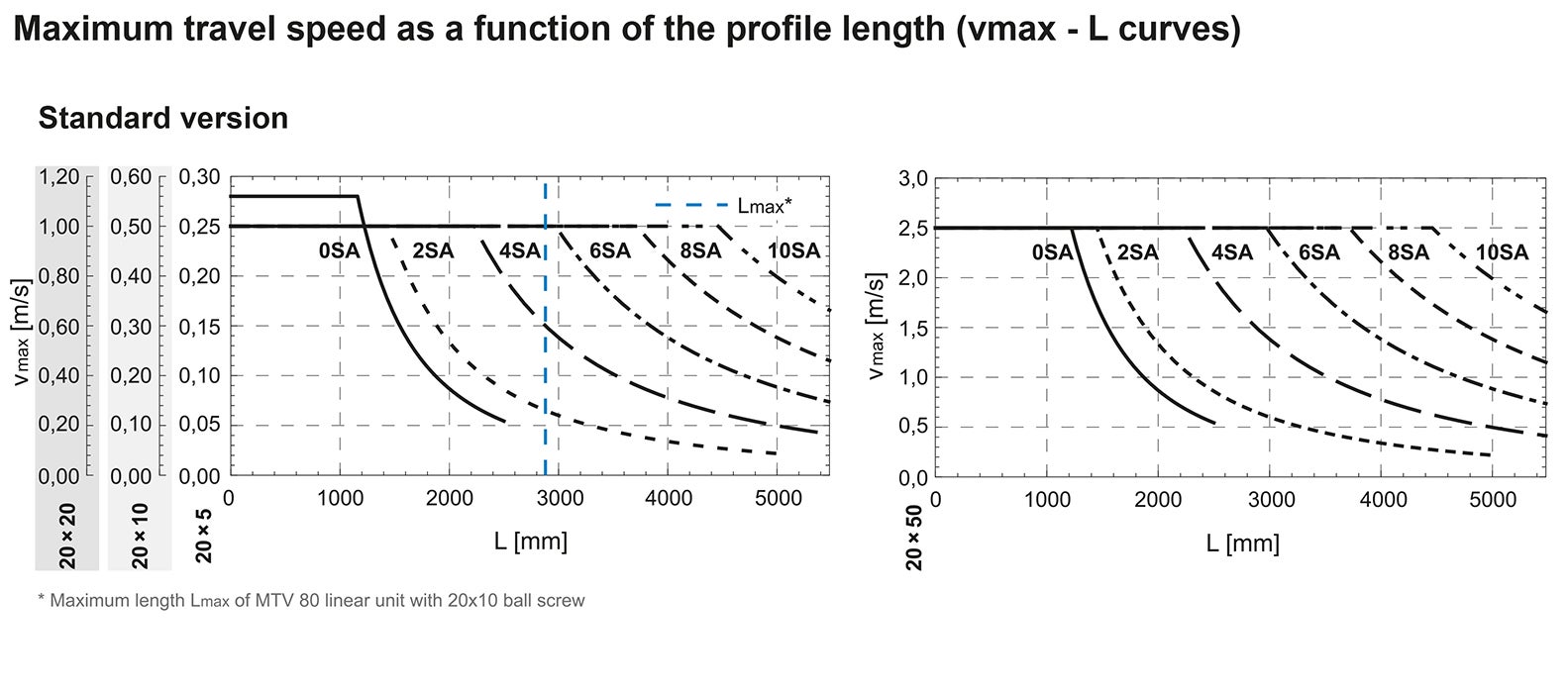

Designation Select all CAD Compare Get quote Max. Rotational Speed (without SA) (rev/min) Max. Travel Speed (without SA) (m/s) Lead Constant (mm/rev) Ball Screw (d x l) Max. Repeatability Precision Standard ISO7 Max. Repeatability Precision ISO5 Dynamic Load Capacity BS Ca (N) Max. Axial Load Fx (N) Max. Drive Torque Ma (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴)
Get quote 3300 0.28 5 20 × 5 ±0.02 ±0.01 14800 14800 11.9 with keyway / 13 without keyway 144.1 192.3
Get quote 3300 0.28 5 20 × 5 ±0.02 ±0.01 14800 14800 11.9 with keyway / 13 without keyway 144.1 192.3
Get quote 3300 0.55 10 20 × 10 ±0.02 ±0.01 15900 13850 11.9 with keyway / 24.5 without keyway 144.1 192.3
Get quote 3300 1.10 20 20 × 20 ±0.02 ±0.01 16250 6930 11.9 with keyway / 24.5 without keyway 144.1 192.3
Get quote 3000 2.50 50 20 × 50 ±0.02 ±0.01 13000 2770 11.9 with keyway / 24.5 without keyway 144.1 192.3
Designation Select all CAD Compare Get quote Ball Screw (d x l) Number of SA ⁿSA Mass of Linear Unit (kg) Moved Mass (kg) Mass Moment of Inertia (10⁻⁵ kg m²) No Load Torque (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴)
Get quote 20 × 5 0 ; 2 ; (4 ; 6 ; 8 ; 10) 8.2 + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 8.9 + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 9.7 + 0.4 × (nSA - 4) + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) 3.00 + 3.00 × (nc - 1) ; 3.07 + 3.00 × (nc - 1) ; 3.21 + 0.035 × (nSA - 4) + 3.00 × (nc - 1) 5.6 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) ; 6.2 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) ; 7.0 + 0.4 × (nSA - 4) + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) 0.23 + 0.23 × (nc - 1) ; 0.26 + 0.23 × (nc - 1) ; 0.31 + 0.015 × (nSA - 4) + 0.23 × (nc - 1) 144.1 192.3
Get quote 20 × 5 0 ; 2 ; (4 ; 6 ; 8 ; 10) 14.6 + 0.0228 × (Abs. Stroke + (nc - 1) × A) + 6.0 × (nc - 1) ; 15.9 + 0.0228 × (Abs. Stroke + (nc - 1) × A) + 6.0 × (nc - 1) ; 17.6 + 0.8 × (nSA - 4) + 0.0228 × (Abs. Stroke + (nc - 1) × A) + 6.0 × (nc - 1) 6.00 + 6.00 × (nc - 1) ; 6.14 + 6.00 × (nc - 1) ; 6.42 + 0.07 × (nSA - 4) + 6.00 × (nc - 1) 9.5 + 0.0254 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) ; 10.7 + 0.0254 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) ; 12.3 + 0.8 × (nSA - 4) + 0.0254 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) 0.46 + 0.46 × (nc - 1) ; 0.51 + 0.46 × (nc - 1) ; 0.62 + 0.03 × (nSA - 4) + 0.46 × (nc - 1) 144.1 192.3
Get quote 20 × 10 0 ; 2 ; (4 ; 6 ; 8 ; 10) 8.2 + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 8.9 + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 9.7 + 0.4 × (nSA - 4) + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) 3.00 + 3.00 × (nc - 1) ; 3.07 + 3.00 × (nc - 1) ; 3.21 + 0.035 × (nSA - 4) + 3.00 × (nc - 1) 6.2 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) ; 6.8 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) ; 7.6 + 0.4 × (nSA - 4) + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) 0.25 + 0.25 × (nc - 1) ; 0.30 + 0.25 × (nc - 1) ; 0.41 + 0.025 × (nSA - 4) + 0.25 × (nc - 1) 144.1 192.3
Get quote 20 × 20 0 ; 2 ; (4 ; 6 ; 8 ; 10) 8.2 + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 8.9 + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 9.7 + 0.4 × (nSA - 4) + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) 3.00 + 3.00 × (nc - 1) ; 3.07 + 3.00 × (nc - 1) ; 3.21 + 0.035 × (nSA - 4) + 3.00 × (nc - 1) 8.5 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 3.04 × (nc - 1) ; 9.1 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 3.04 × (nc - 1) ; 10.1 + 0.5 × (nSA - 4) + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 3.04 × (nc - 1) 0.30 + 0.30 × (nc - 1) ; 0.41 + 0.30 × (nc - 1) ; 0.62 + 0.055 × (nSA - 4) + 0.30 × (nc - 1) 144.1 192.3
Get quote 20 × 50 0 ; 2 ; (4 ; 6 ; 8 ; 10) 8.2 + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 8.9 + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 9.7 + 0.4 × (nSA - 4) + 0.0114 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) 3.00 + 3.00 × (nc - 1) ; 3.07 + 3.00 × (nc - 1) ; 3.21 + 0.035 × (nSA - 4) + 3.00 × (nc - 1) 24.4 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 19.00 × (nc - 1) ; 25.5 + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 19.00 × (nc - 1) ; 27.1 + 0.6 × (nSA - 4) + 0.0127 × (Abs. Stroke + (nc - 1) × A) + 19.00 × (nc - 1) 0.70 + 0.70 × (nc - 1) ; 0.97 + 0.70 × (nc - 1) ; 1.50 + 0.135 × (nSA - 4) + 0.70 × (nc - 1) 144.1 192.3
