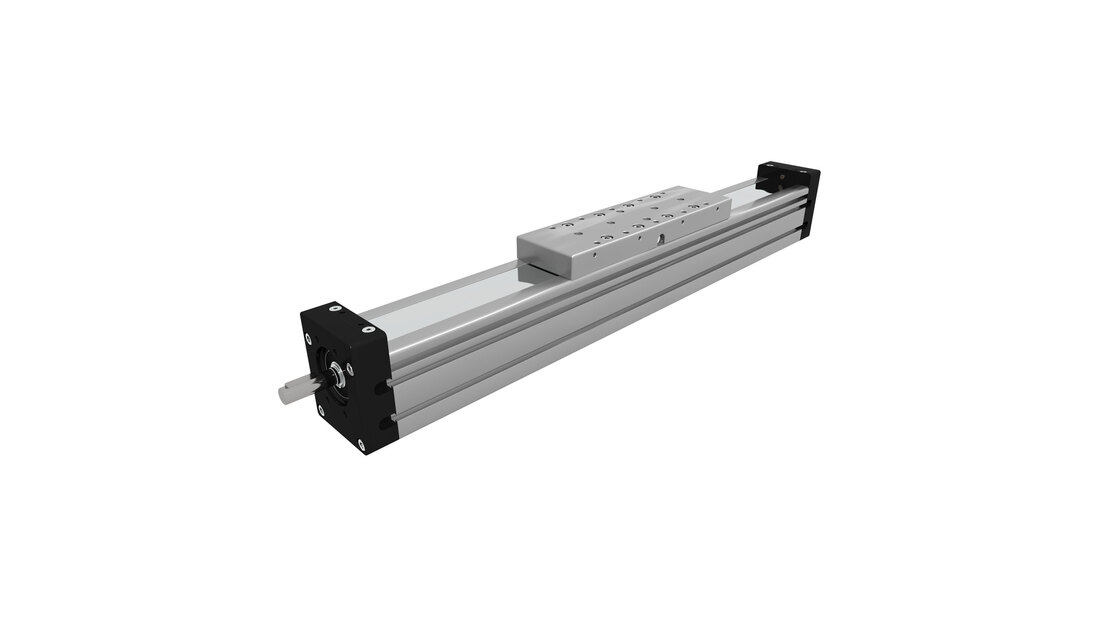

Linear Unit MTV 65

The MTV series describes linear units with precision ball screw drive, integrated guide rail and compact dimensions. The units use a precision ball screw, with tolerance class ISO7 (ISO5 on request), with reduced backlash of the ball nut. A corrosion-resistant protection strip, protects all the parts in the profile from dust and other contaminants.

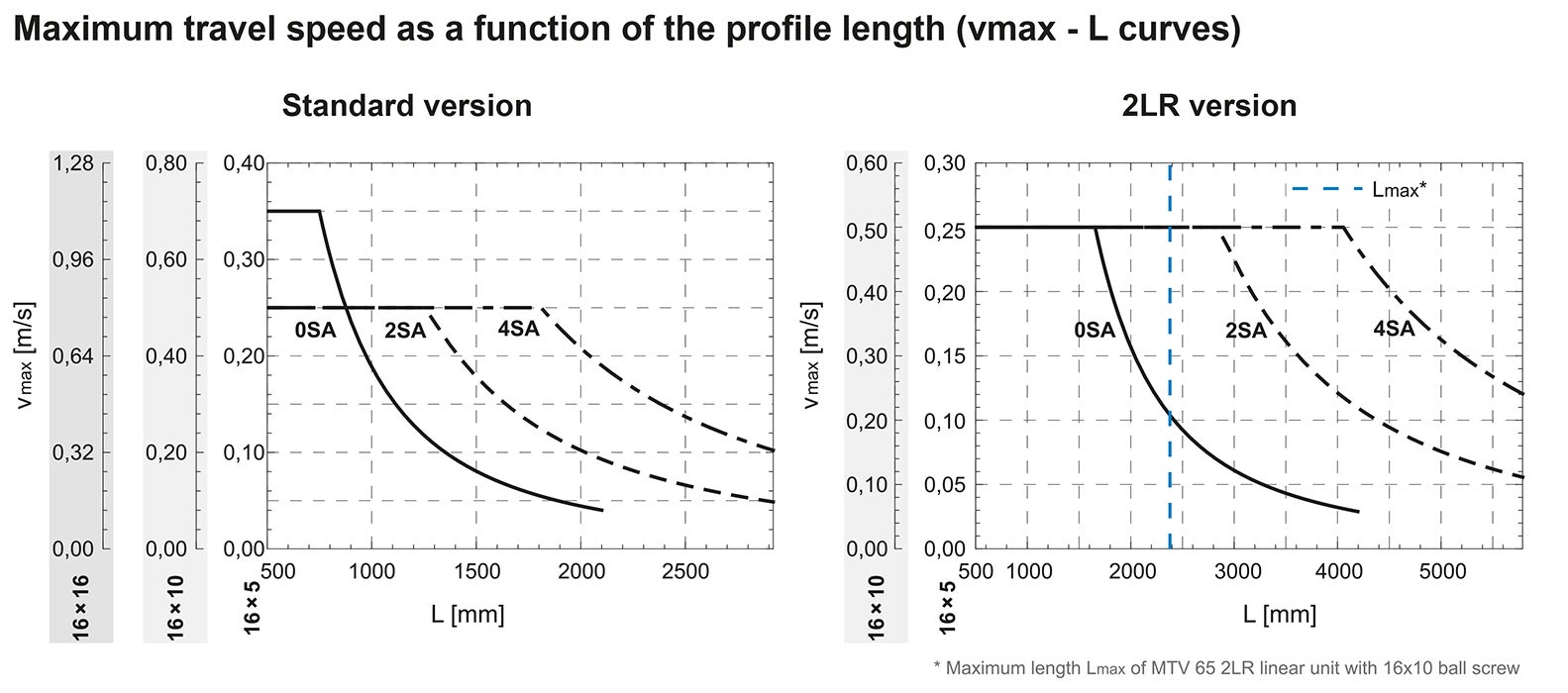

To achieve higher speeds at the same stroke of the linear unit, the ball screw support system can be integrated. With this feature vibrations and deflections of the ball screw are reduced, therefore longer strokes are possible. The linear unit with integrated support system can have a higher axial load capacity. Ball screw supports are made of high quality plastic materials with high wear resistance properties. The system enables ball screw support in horizontal or vertical positioning of the linear unit.

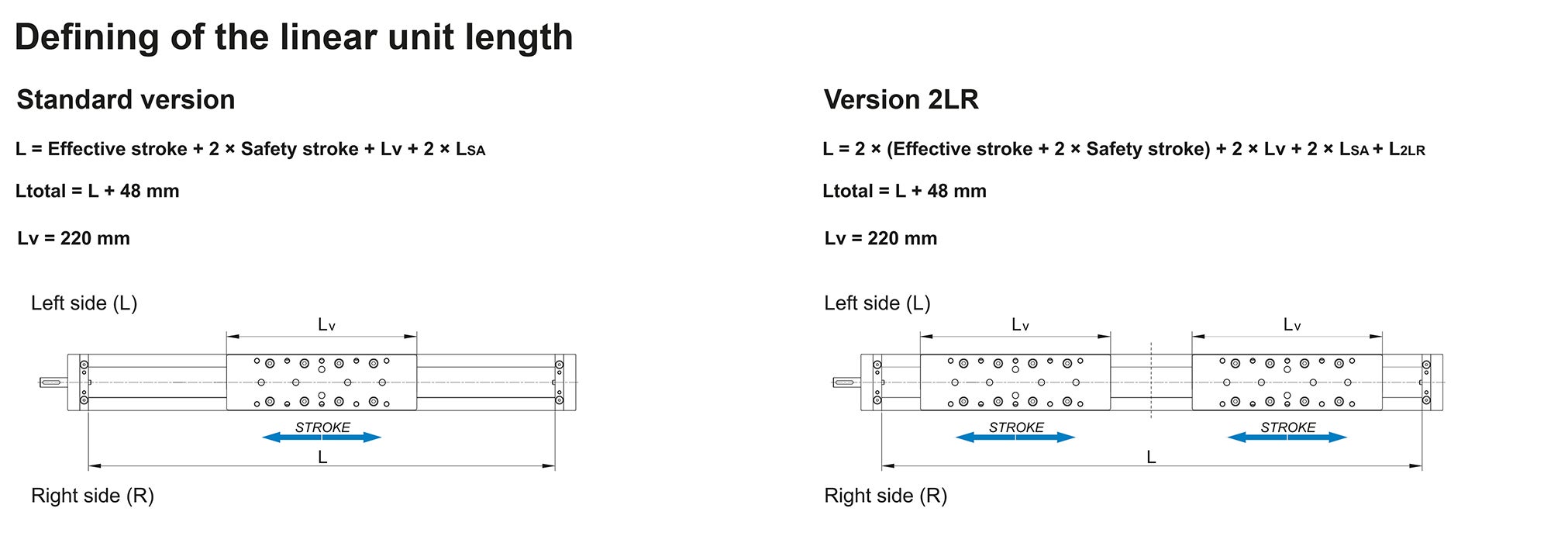

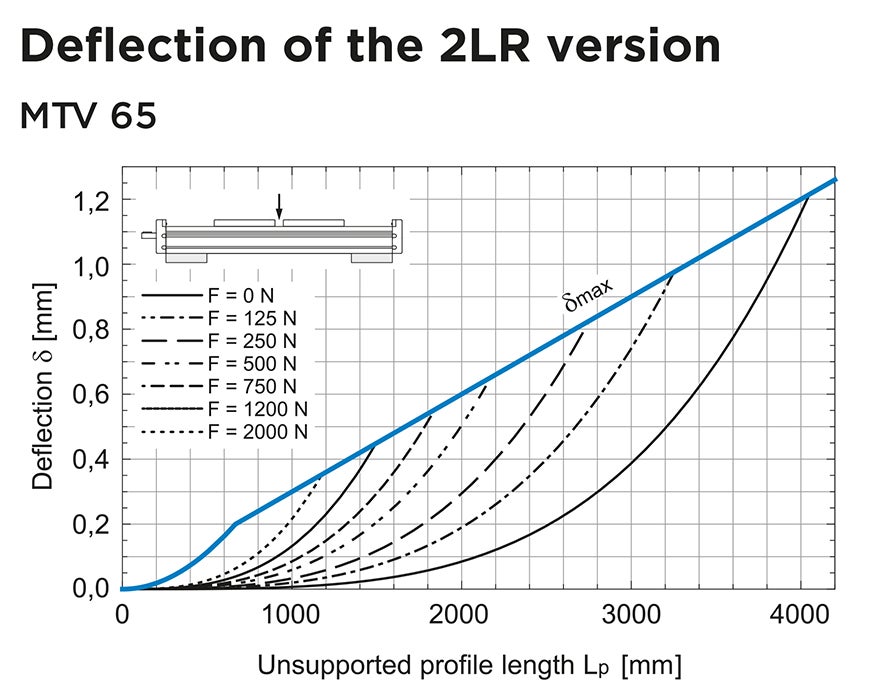

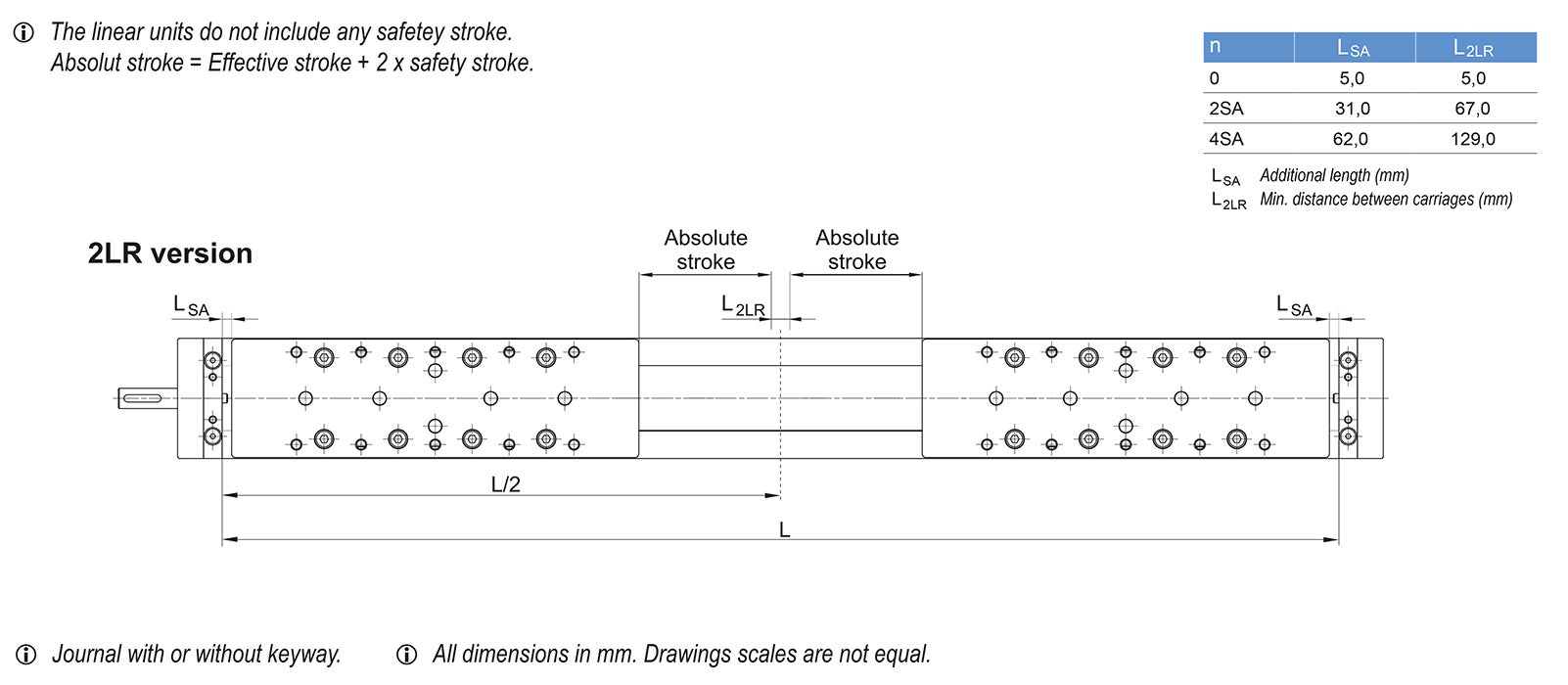

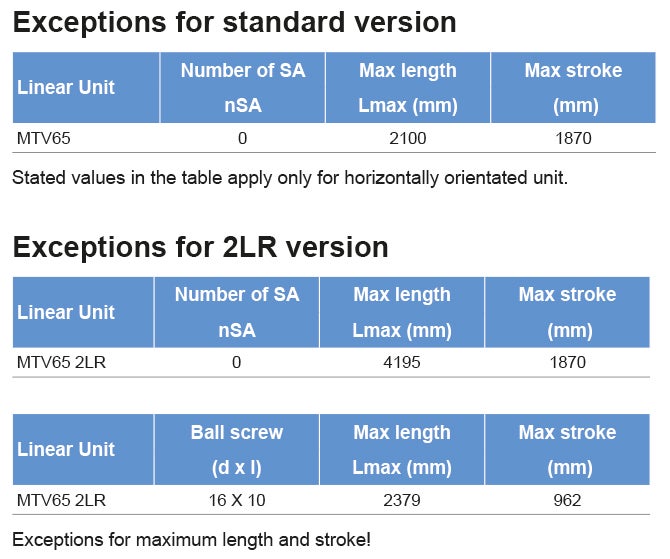

A 2LR version of MTV linear unit is available, where two carriages are moving simultaneously in opposite directions. Both right- and left-handed precision ball screws are used, which are rigidly connected. The ball screw support system can also be integrated.

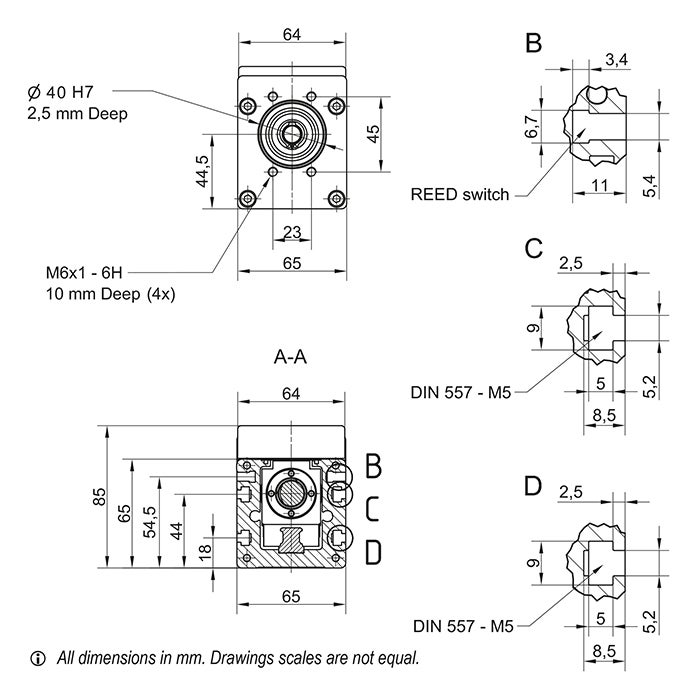

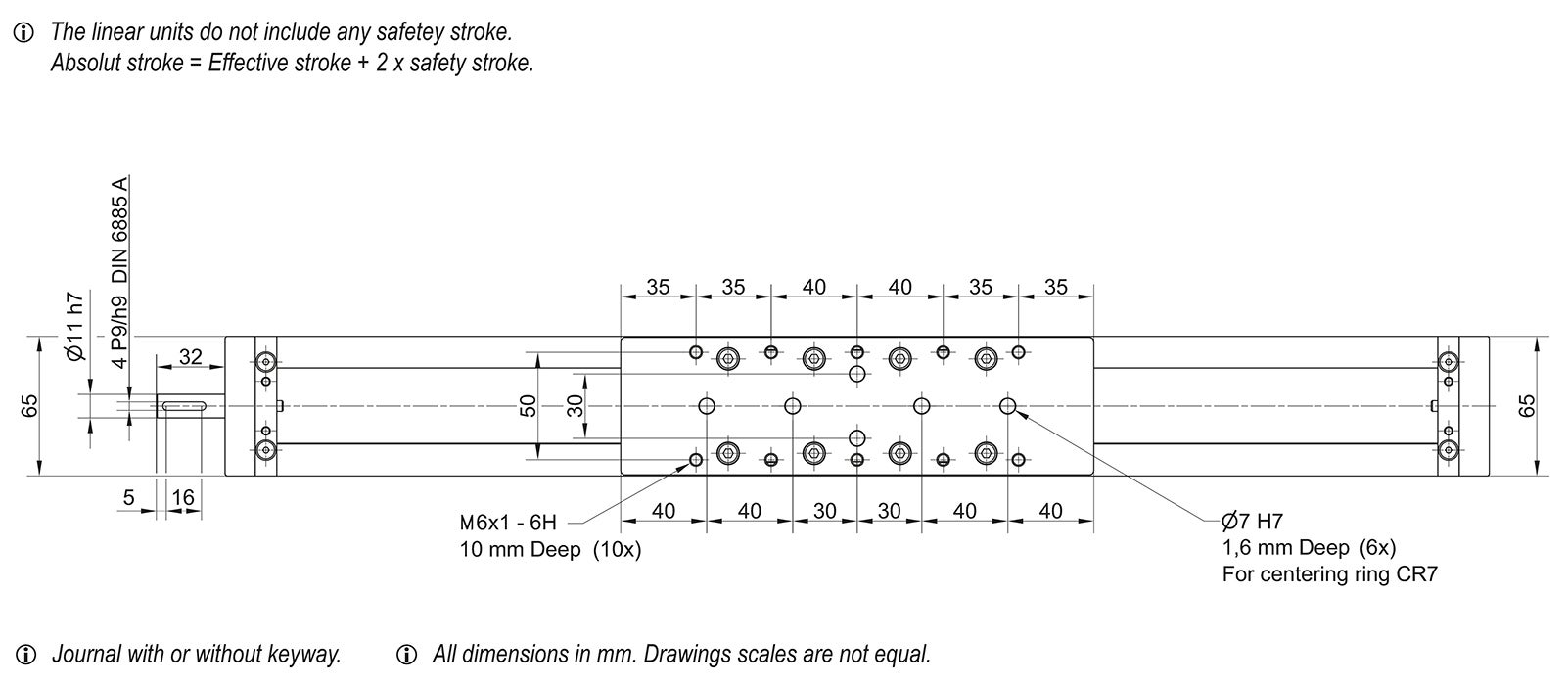

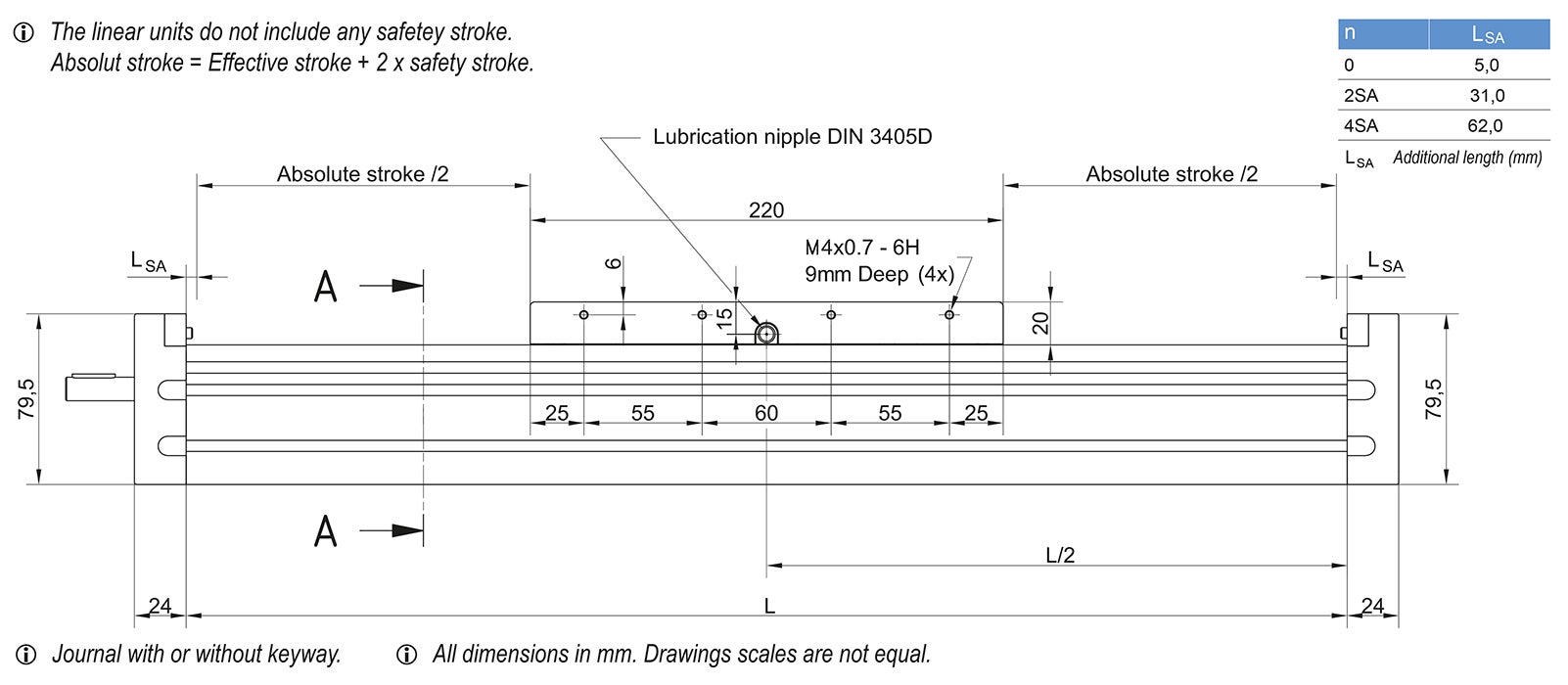

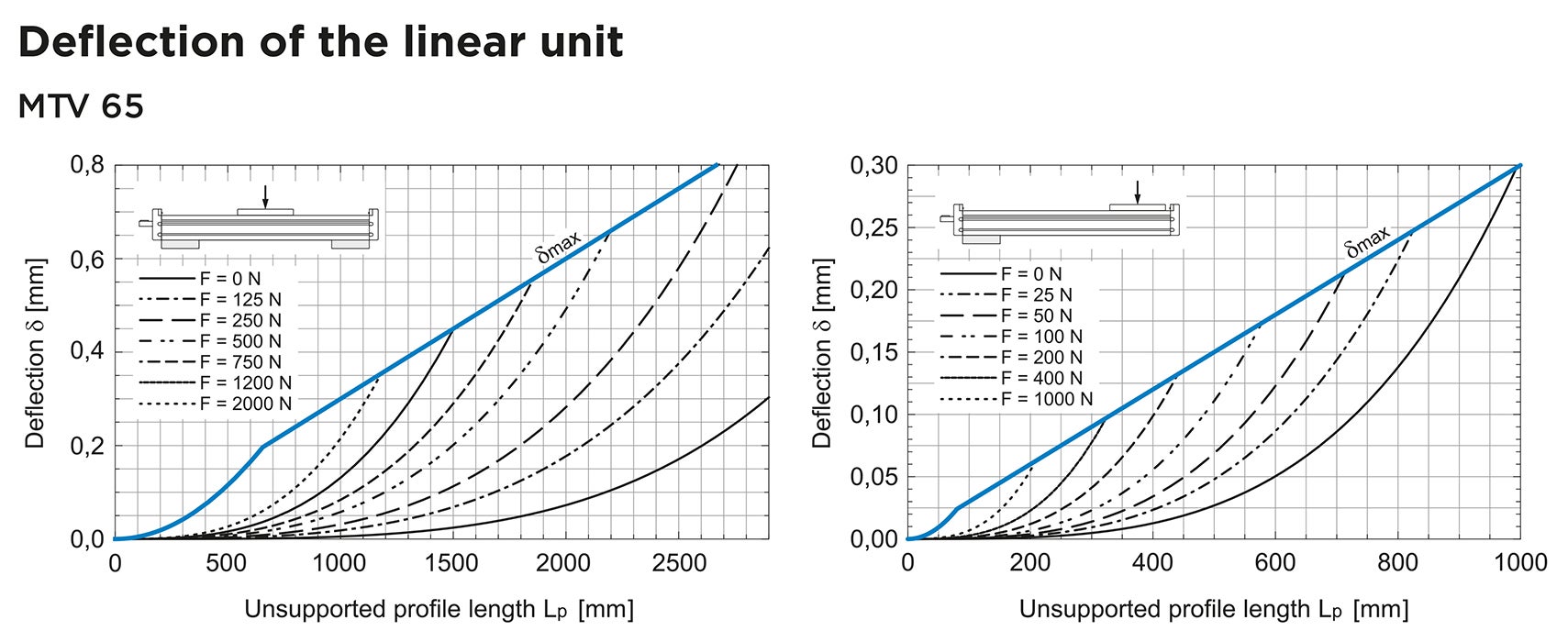

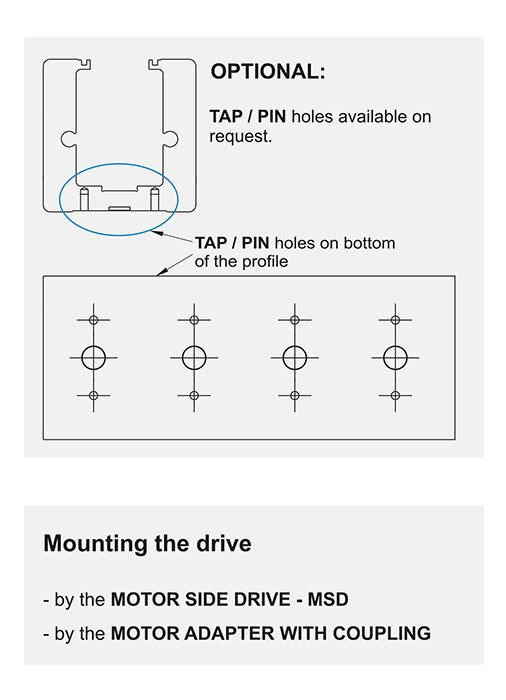

Dimensions in mm.

Product Information

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 20
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD
Select columns
CAD Compare Get quote
Get quote 2 220 19800 35000 158 700 700 6540 10190 350 233 2920 2690 40
Get quote 2 220 19800 35000 158 700 700 6540 10190 350 233 5789 2667 40
Get quote 2 220 19800 35000 158 700 700 6540 10190 350 233 2920 2690 40
Get quote 2 220 19800 35000 158 700 700 6540 10190 350 233 5789 2667 40
Get quote 2 220 19800 35000 158 700 700 6540 10190 350 233 2920 2690 40

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Select columns
CAD Compare Get quote
Get quote 4200 0.35 5 16 × 5 ±0.02 ±0.01 13150 8700 5.5 with keyway / 7.7 without keyway 71.3 89.4
Get quote 4200 0.35 5 16 × 5 ±0.02 ±0.01 13150 8700 5.5 with keyway / 7.7 without keyway 71.3 89.4
Get quote 4200 0.70 10 16 × 10 ±0.02 ±0.01 11550 6730 5.5 with keyway / 11.9 without keyway 71.3 89.4
Get quote 4200 0.70 10 16 × 10 ±0.02 ±0.01 11550 6730 5.5 with keyway / 11.9 without keyway 71.3 89.4
Get quote 4200 1.12 16 16 × 16 ±0.02 ±0.01 8170 4200 5.5 with keyway / 11.9 without keyway 71.3 89.4
Select columns
CAD Compare Get quote
Get quote 16 × 5 0 ; 2 ; 4 4.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 4.5 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 5.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) 1.50 + 1.50 × (nc - 1) ; 1.58 + 1.50 × (nc - 1) ; 1.66 + 1.50 × (nc - 1) 1.6 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.09 × (nc - 1) ; 1.9 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.09 × (nc - 1) ; 2.2 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.09 × (nc - 1) 0.14 + 0.14 × (nc - 1) ; 0.16 + 0.14 × (nc - 1) ; 0.18 + 0.14 × (nc - 1) 71.3 89.4
Get quote 16 × 5 0 ; 2 ; 4 7.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 8.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 9.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) 3.00 + 3.00 × (nc - 1) ; 3.16 + 3.00 × (nc - 1) ; 3.32 + 3.00 × (nc - 1) 2.9 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) ; 3.5 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) ; 4.1 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.19 × (nc - 1) 0.28 + 0.28 × (nc - 1) ; 0.32 + 0.28 × (nc - 1) ; 0.35 + 0.28 × (nc - 1) 71.3 89.4
Get quote 16 × 10 0 ; 2 ; 4 4.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 4.5 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 5.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) 1.50 + 1.50 × (nc - 1) ; 1.58 + 1.50 × (nc - 1) ; 1.66 + 1.50 × (nc - 1) 1.9 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) ; 2.2 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) ; 2.5 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.38 × (nc - 1) 0.15 + 0.15 × (nc - 1) ; 0.19 + 0.15 × (nc - 1) ; 0.22 + 0.15 × (nc - 1) 71.3 89.4
Get quote 16 × 10 0 ; 2 ; 4 7.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 8.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) ; 9.2 + 0.0146 × (Abs. Stroke + (nc - 1) × A) + 3.0 × (nc - 1) 3.00 + 3.00 × (nc - 1) ; 3.16 + 3.00 × (nc - 1) ; 3.32 + 3.00 × (nc - 1) 3.5 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) ; 4.1 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) ; 4.8 + 0.0104 × (Abs. Stroke + (nc - 1) × A) + 0.76 × (nc - 1) 0.30 + 0.30 × (nc - 1) ; 0.34 + 0.30 × (nc - 1) ; 0.37 + 0.30 × (nc - 1) 71.3 89.4
Get quote 16 × 16 0 ; 2 ; 4 4.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 4.5 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) ; 5.0 + 0.0073 × (Abs. Stroke + (nc - 1) × A) + 1.5 × (nc - 1) 1.50 + 1.50 × (nc - 1) ; 1.58 + 1.50 × (nc - 1) ; 1.66 + 1.50 × (nc - 1) 2.5 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.97 × (nc - 1) ; 2.8 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.97 × (nc - 1) ; 3.2 + 0.0052 × (Abs. Stroke + (nc - 1) × A) + 0.97 × (nc - 1) 0.20 + 0.20 × (nc - 1) ; 0.26 + 0.20 × (nc - 1) ; 0.31 + 0.20 × (nc - 1) 71.3 89.4
