Linear Unit MTV 40

The MTV series describes linear units with precision ball screw drive, integrated guide rail and compact dimensions. The units use a precision ball screw, with tolerance class ISO7 (ISO5 on request), with reduced backlash of the ball nut. A corrosion-resistant protection strip, protects all the parts in the profile from dust and other contaminants.

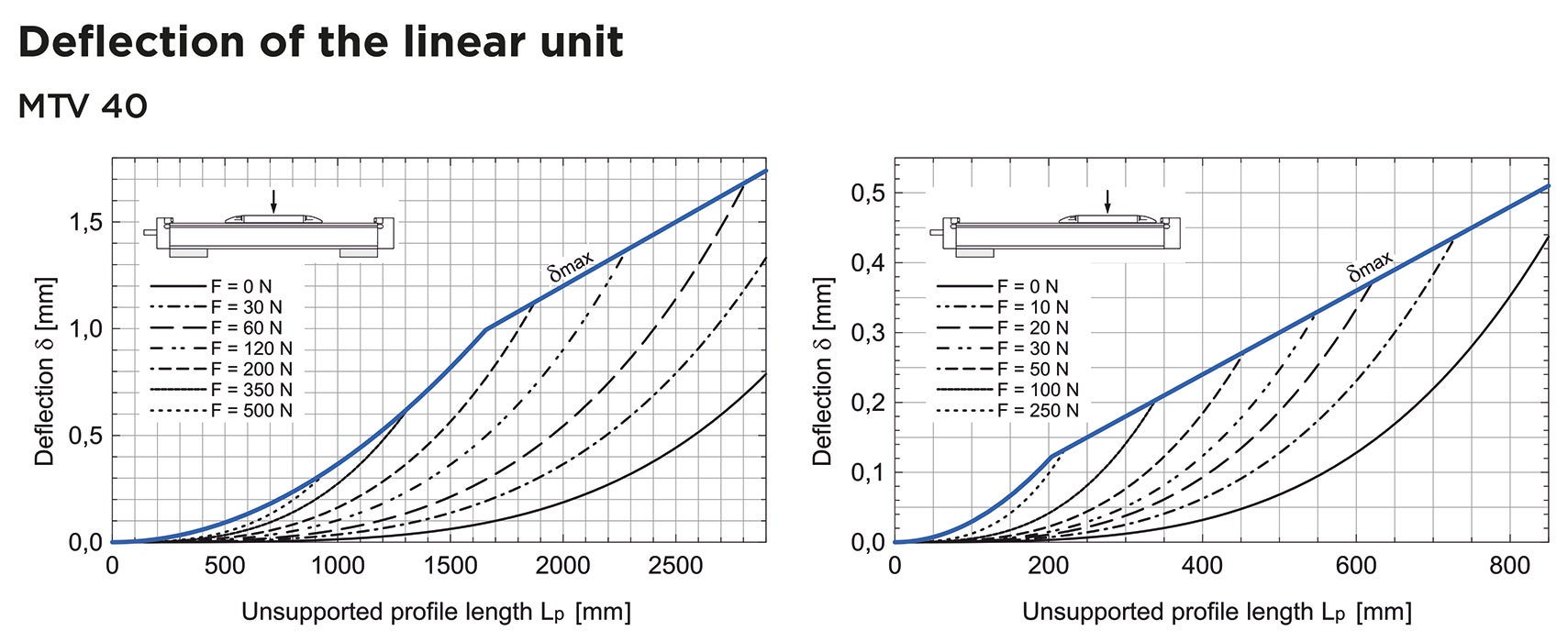

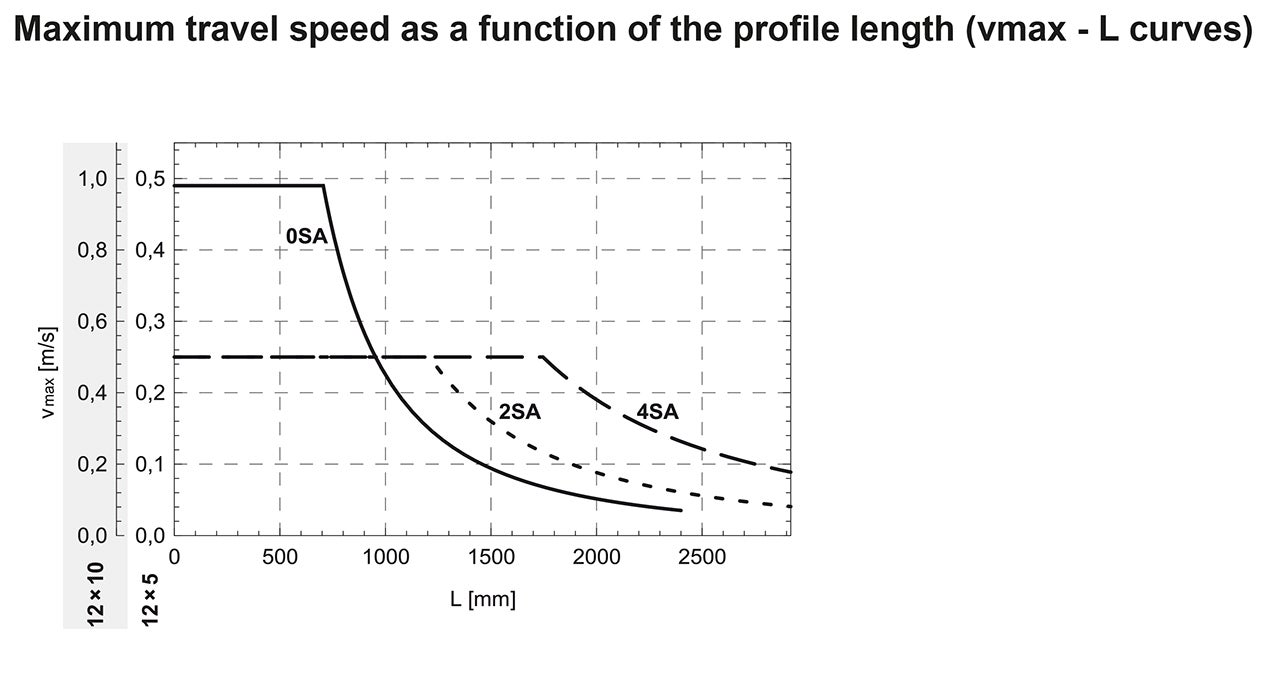

To achieve higher speeds at the same stroke of the linear unit, the ball screw support system can be integrated. With this feature vibrations and deflections of the ball screw are reduced, therefore longer strokes are possible. The linear unit with integrated support system can have a higher axial load capacity. Ball screw supports are made of high quality plastic materials with high wear resistance properties. The system enables ball screw support in horizontal or vertical positioning of the linear unit.

A 2LR version of MTV linear unit is available, where two carriages are moving simultaneously in opposite
directions. Both right- and left-handed precision ball screws are used, which are rigidly connected. The ball screw support system can also be integrated.

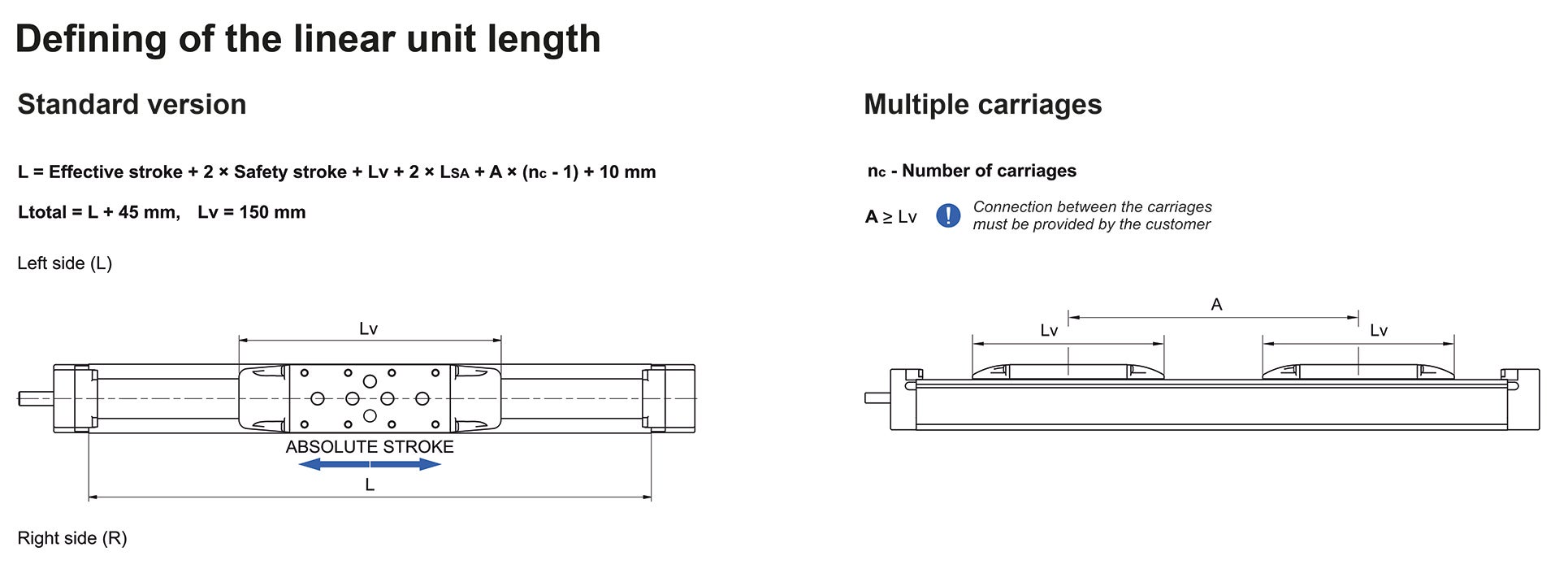

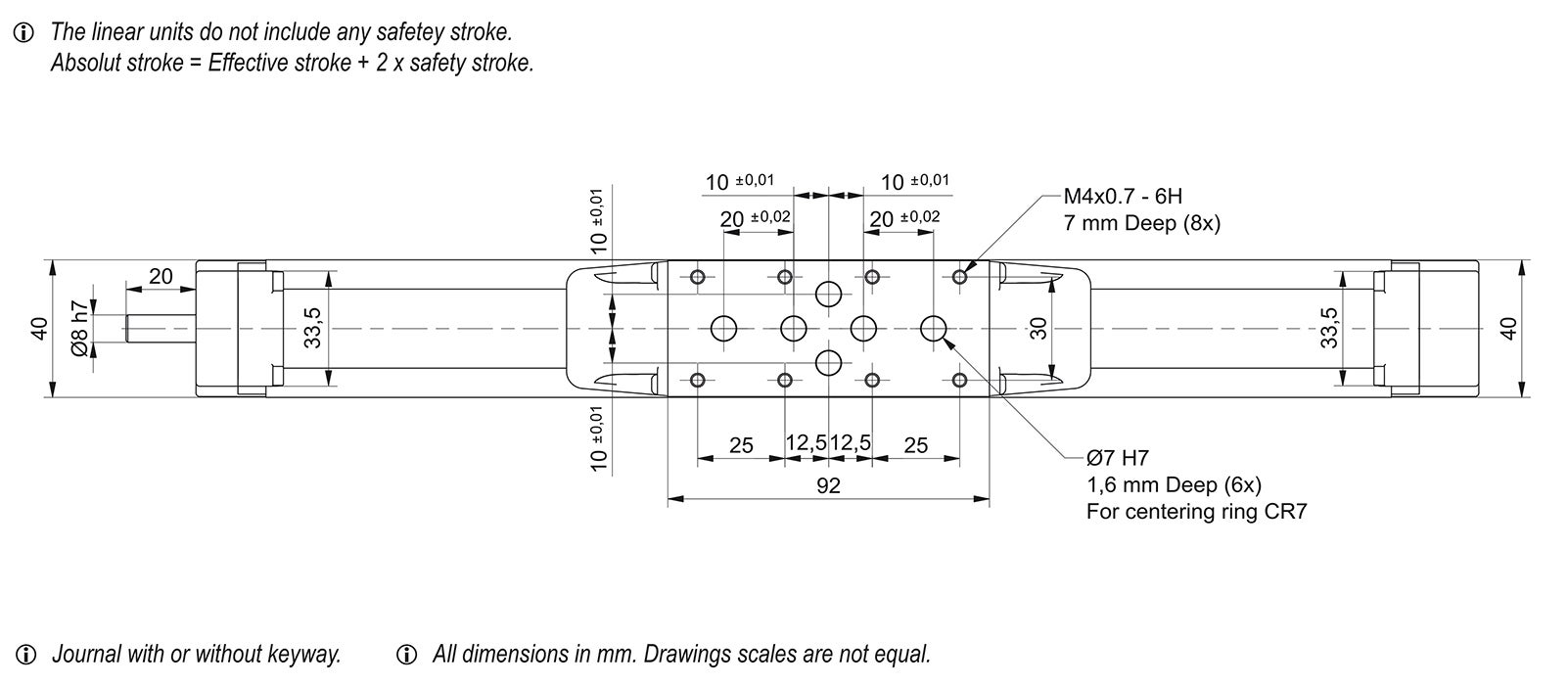

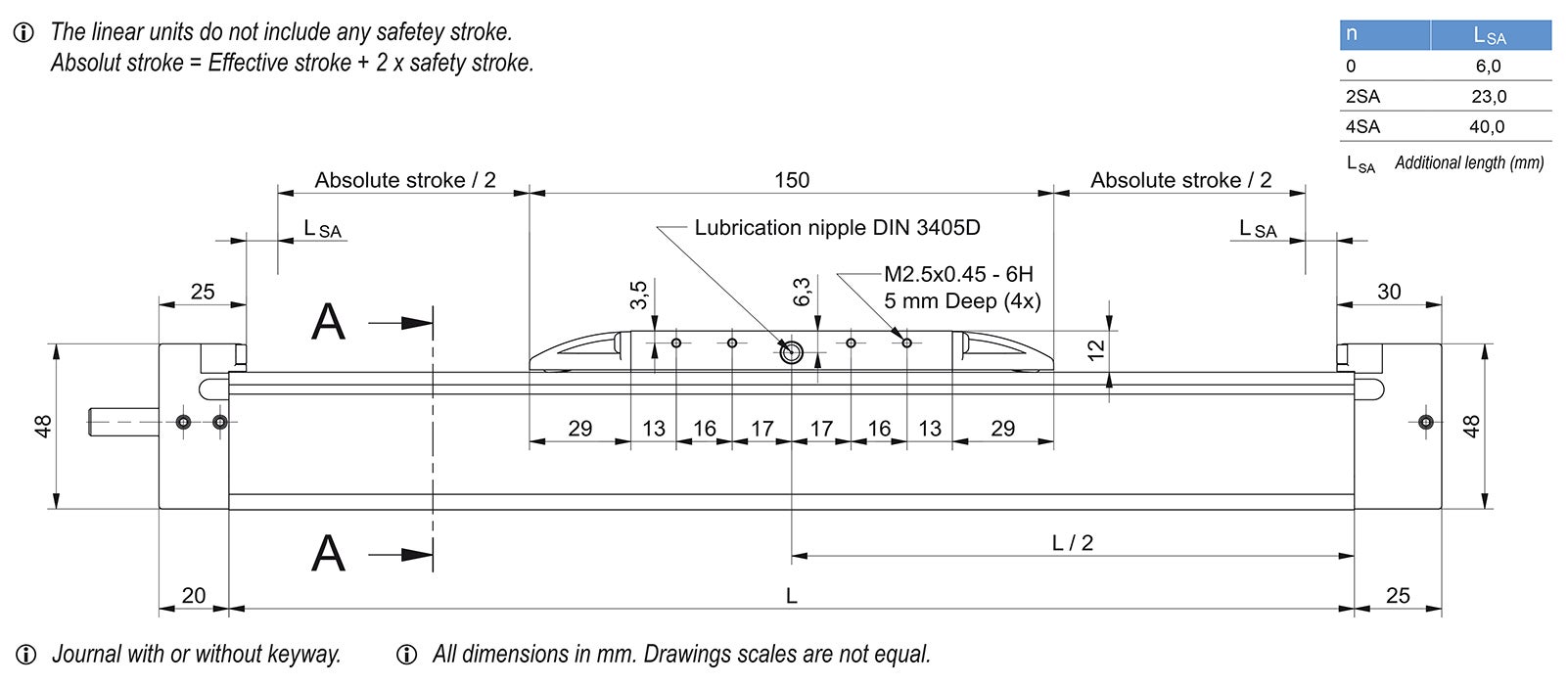

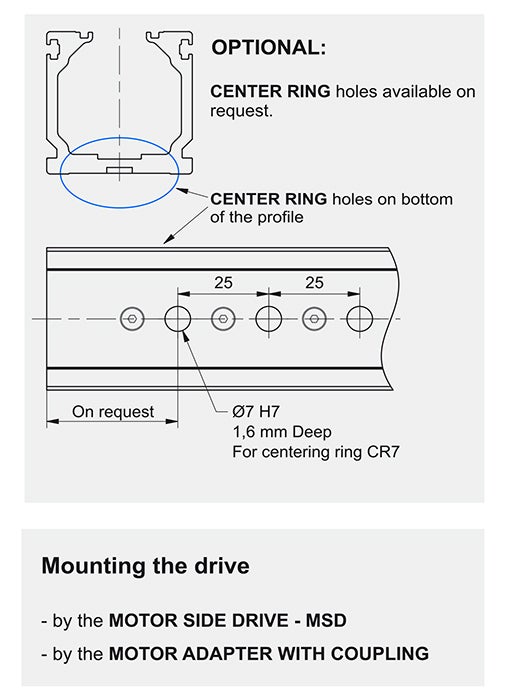

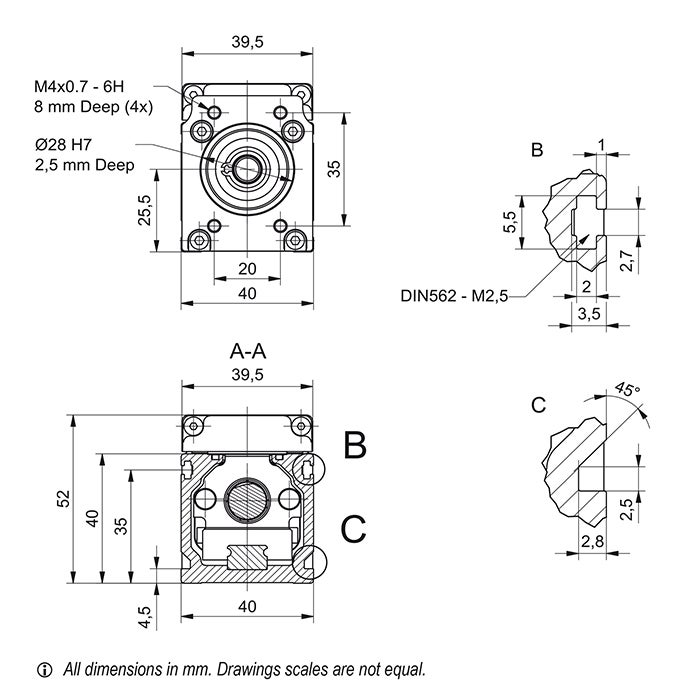

Dimensions in mm.
Read more

Product Information

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 20
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Carriage Length Lv (mm) Dynamic Load Capacity C (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Max. Length Lmax (mm) Max. Stroke (mm) Min. Stroke (mm)
Get quote 2 150 4620 28 260 260 2300 3850 210 130 2900 2728 30
Get quote 2 150 4620 28 260 260 2300 3850 210 130 2900 2728 30

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote Max. Rotational Speed (without SA) (rev/min) Max. Travel Speed (without SA) (m/s) Lead Constant (mm/rev) Ball Screw (d x l) Max. Repeatability Precision Standard ISO7 Max. Repeatability Precision ISO5 Dynamic Load Capacity BS Ca (N) Max. Axial Load Fx (N) Max. Drive Torque Ma (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴) Max. Acceleration (m/s)
Get quote 5800 0.49 5 12 × 5 ±0.02 ±0.01 5000 3400 3 10 11 20
Get quote 5800 0.97 10 12 × 10 ±0.02 ±0.01 3800 2540 4.5 10 11 20
Designation Select all CAD Compare Get quote Ball Screw (d x l) Number of SA ⁿSA Mass of Linear Unit (kg) Moved Mass (kg) Mass Moment of Inertia (10⁻⁵ kg m²) No Load Torque (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴)
Get quote 12 × 5 0 ; 2 ; 4 1.2 + 0.0028 × (Abs. Stroke + (nc - 1) × A) + 0.47 × (nc - 1) ; 1.3 + 0.0028 × (Abs. Stroke + (nc - 1) × A) + 0.47 × (nc - 1) ; 1.4 + 0.0028 × (Abs. Stroke + (nc - 1) × A) + 0.47 × (nc - 1) 0.47 + 0.47 × (nc - 1) ; 0.50 + 0.47 × (nc - 1) ; 0.53 + 0.47 × (nc - 1) 0.48 + 0.0012 × (Abs. Stroke + (nc - 1) × A) + 0.03 × (nc - 1) ; 0.53 + 0.0012 × (Abs. Stroke + (nc - 1) × A) + 0.03 × (nc - 1) ; 0.57 + 0.0012 × (Abs. Stroke + (nc - 1) × A) + 0.03 × (nc - 1) 0.08 + 0.08 × (nc - 1) ; 0.09 + 0.08 × (nc - 1) ; 0.10 + 0.08 × (nc - 1) 10 11
Get quote 12 × 10 0 ; 2 ; 4 1.2 + 0.0028 × (Abs. Stroke + (nc - 1) × A) + 0.47 × (nc - 1) ; 1.3 + 0.0028 × (Abs. Stroke + (nc - 1) × A) + 0.47 × (nc - 1) ; 1.4 + 0.0028 × (Abs. Stroke + (nc - 1) × A) + 0.47 × (nc - 1) 0.47 + 0.47 × (nc - 1) ; 0.50 + 0.47 × (nc - 1) ; 0.53 + 0.47 × (nc - 1) 0.57 + 0.0012 × (Abs. Stroke + (nc - 1) × A) + 0.12 × (nc - 1) ; 0.62 + 0.0012 × (Abs. Stroke + (nc - 1) × A) + 0.12 × (nc - 1) ; 0.67 + 0.0012 × (Abs. Stroke + (nc - 1) × A) + 0.12 × (nc - 1) 0.09 + 0.09 × (nc - 1) ; 0.11 + 0.09 × (nc - 1) ; 0.14 + 0.09 × (nc - 1) 10 11
