IS - lnductive Switch
Contact Rollco for CAD-files.

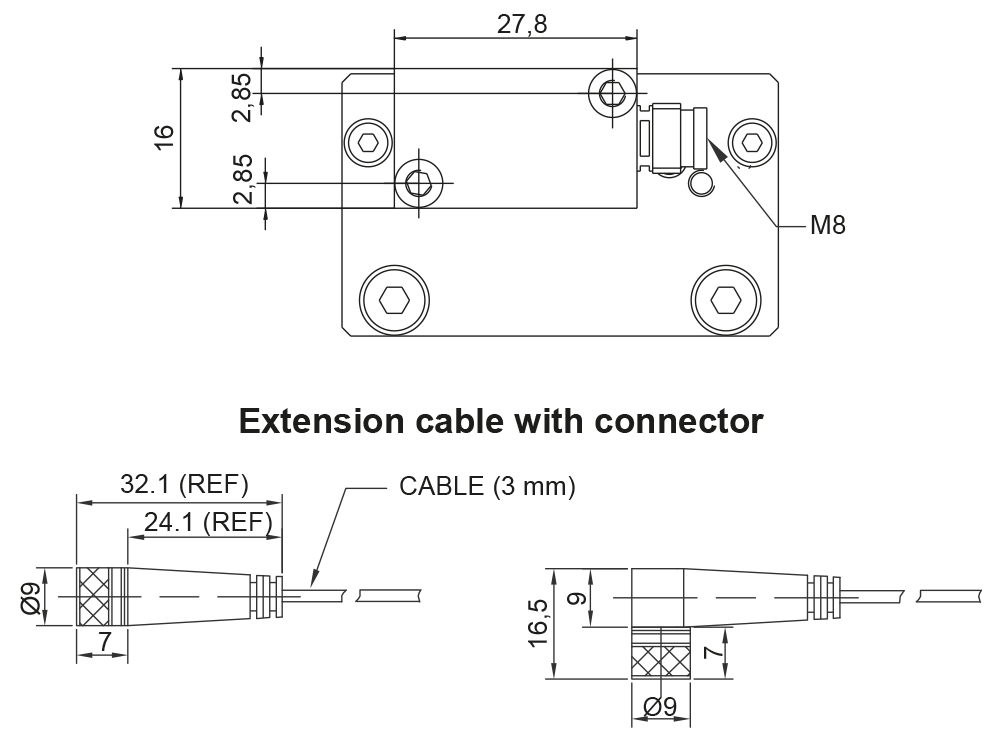

Dimensions in mm.
Read more
Dimensions in mm.
Product Information
Ambient Temperature (°C): -25 ... + 70
Rated voltage: 10 ~ 30V DC
Sensor Type: PNP
Switching function: NC/NO
Max. Switching Current (mA): 150x.
Switching Frequency (Hz): 800 max.
Voltage drop: 3.5V
Protection Class: IP67
Electrical connection: M8, 3-pin
Extension cable: Energy chain compliant - bending radius 75 mm
Cable material length: PU
Cable Length (m): 2 / 5
Cable entry: M8, 3-pin straight or angled connector
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | |
|---|---|---|---|---|---|---|---|
|
|
|
2 | MTJ/MRJ 40 | ||||
|
|
|
2 | MTJZ 40 | ||||
|
|
|
2 | MTJ/MRJ/MTV 65 MTJZ 65/80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 110 | ||||
|
|
|
2 | MTJZ 110 | ||||
|
|
|
2 | MTJ ECO 40 | ||||
|
|
|
2 | CTV/CTJ 90 | ||||
|
|
|
2 | CTV/CTJ 110 | ||||
|
|
|
2 | CTV/CTJ 145/200 | ||||
|
|
|
2 | All models | ||||
|
|
|
2 | MTJ/MRJ 40 MTJZ 40 | ||||
|
|
|
2 | MTJ/MRJ/MTV 65 MTJZ 65/80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 110 | ||||
|
|
|
2 | MTJZ 110 | ||||
|
|
|
2 | MTJ ECO 40 | ||||
|
|
|
2 | CTV/CTJ 90 | ||||
|
|
|
2 | CTV/CTJ 110 | ||||
|
|
|
2 | CTV/CTJ 145 | ||||
|
|
|
2 | CTV/CTJ 200 | ||||
|
|
|
2 | All models | ||||
|
|
|
2 | MTJ/MRJ 40 MTJZ 40 | ||||
|
|
|
2 | MTJ/MRJ/MTV 65 MTJZ 65/80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 80 | ||||
|
|
|
2 | MTJ/MRJ/MTV 110 | ||||
|
|
|
2 | MTJZ 110 | ||||
|
|
|
2 | MTJ ECO 40 | ||||
|
|
|
2 | CTV/CTJ 90 | ||||
|
|
|
2 | CTV/CTJ 110 | ||||
|
|
|
2 | CTV/CTJ 145 | ||||
|
|
|
2 | CTV/CTJ 200 | ||||
|
|
|
2 | All models | ||||
|
|
|
2 | All models | ||||
|
|
|
2 | All models | ||||
|
|
|
2 | All models |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
