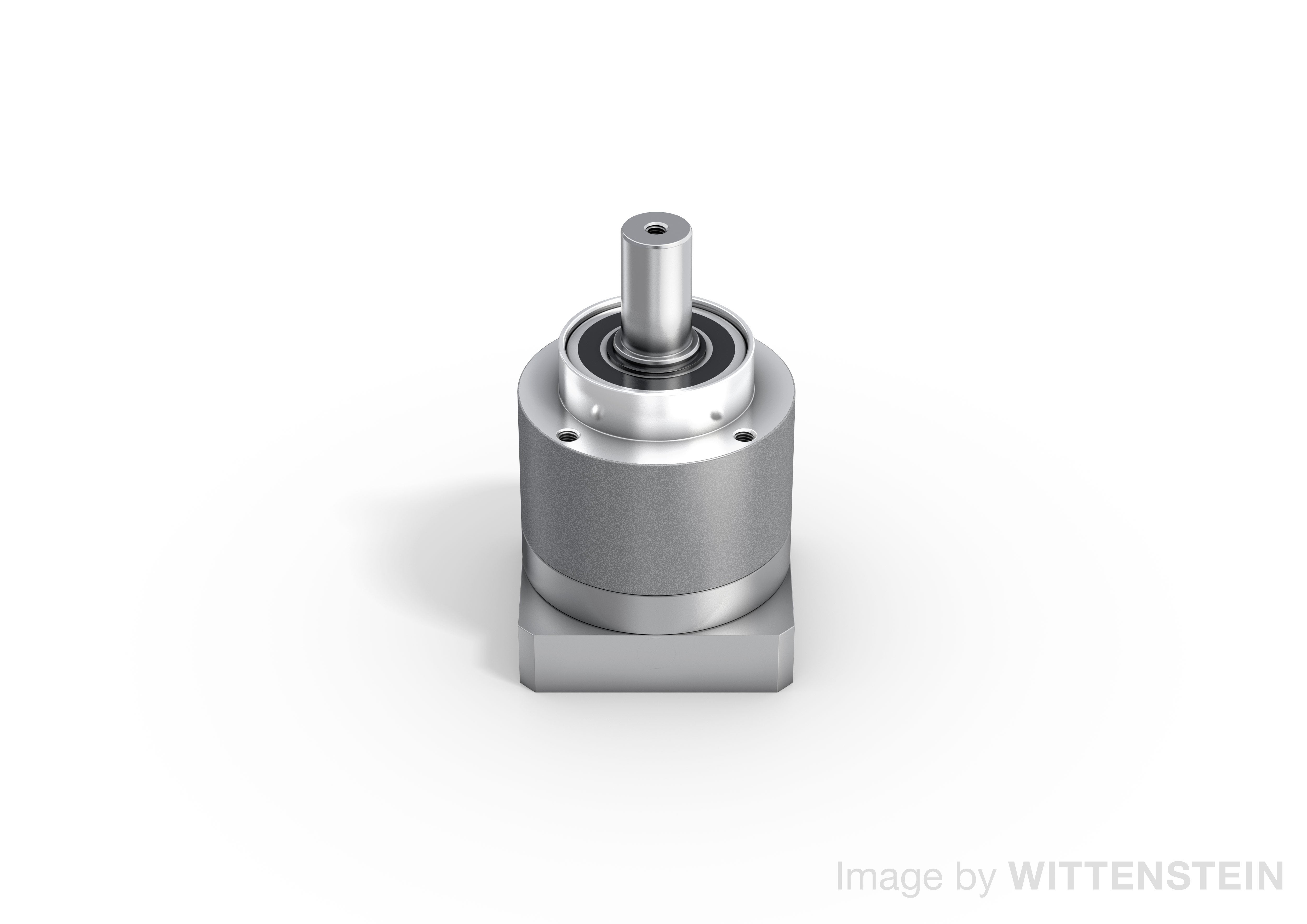

CPS planetary gearbox

COMBINE WITH LINEAR UNIT RHL

Economical entry level planetary gearbox with impressive price-performance and quality. CPK offers a long, cylindrical output interface with an optional B5-style flange. Output shaft smooth or with a keyway. The stated maximal backlash is kept throughout the lifetime of the gearbox

Product Information

Ratio: 3-100

Max. Torque (Nm): 48-272

Other models: food-grade lubrication

Technical_information_CP-CPS.pdf

Planetary_Gearboxes_Order_Codes.pdf

Operating_manual_NP-NPK-NPL-NPLK-NPR-NPRK-NPS-NPSK-NPT-NPTK-CP-CPS-CPS-CPSK.pdf

Dimensioning_matrix.pdf

Download PDF (all data) code.product.loadingpdf

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Get quote	Lead Time *	Ratio	Remark	Size
CPS015	Get quote	2	3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100	Compatible with Linear unit RHL80 + Adapter kit RHL80	015
CPS025	Get quote	2	3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100	-	025
CPS035	Get quote	2	3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100	Compatible with Linear unit RHL110+ Adapter kit RHL110	035

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

LOCALLY MANUFACTURED

Linear Unit RHL80

Complete linear unit with rail guide and toothed belt
LOCALLY MANUFACTURED

Linear Unit RHL110

Complete linear unit with rail guide and toothed belt
Adapter kit RHL

Connects linear unit RHL with a planetary gearbox.

NPS planetary gearbox

Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy.
NPL planetary gearbox

Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy.
CP planetary gearbox

Ratio 3-100, Backlash: ≤ 12 -18 arcmin. For medium to low accuracy.
NPK bevel gearbox

Version of NP with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.
NP planetary gearbox

Ratio 3-100, Backlash: ≤ 8 -13 arcmin. For medium accuracy.
NPSK bevel gearbox

Version of NPS with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.
NPLK bevel gearbox

Version of NPL with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin.
CPK bevel gearbox

Version of CP with a 90° bevel gear input stage. Backlash ≤ 13 - 20 arcmin.
COMBINE WITH LINEAR UNIT RHL

CPSK bevel gearbox

Version of CPS with a 90° bevel gear input stage. Backlash ≤ 15 - 18 arcmin.
