Drive units TB80

We offer a standard selection of motors and gears for TB80 timing belt conveyor.
We can customise the drive shaft to accommodate many different motors and gear choices. Please contact Rollco for more information.

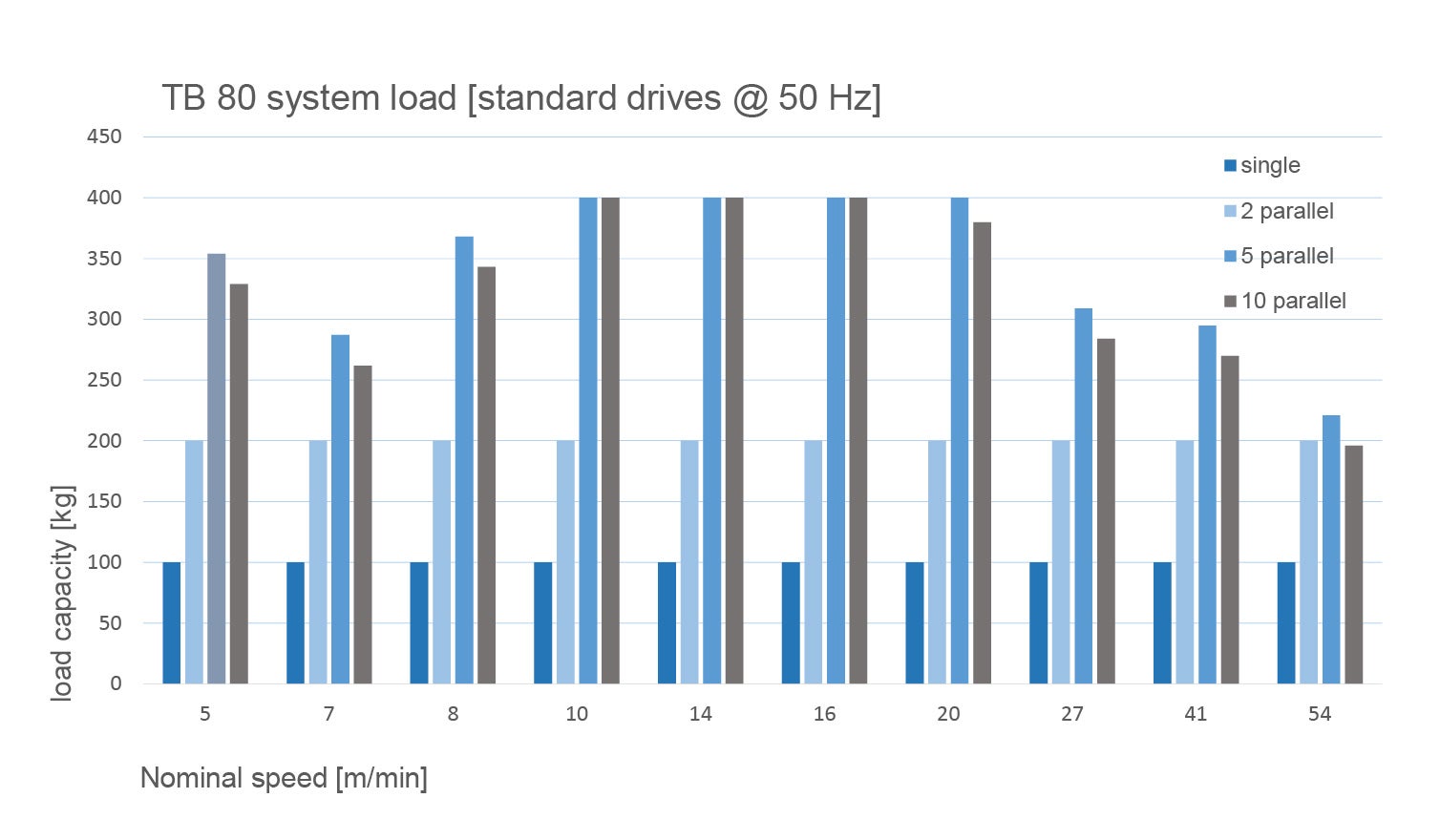

Performance data based on continuous operation at nominal voltage, 50 Hz and 1400 rpm motor speed.
For operation using frequency inverter please contact Rollco.

Motors and gears are not assembled to the unit.

Product Information

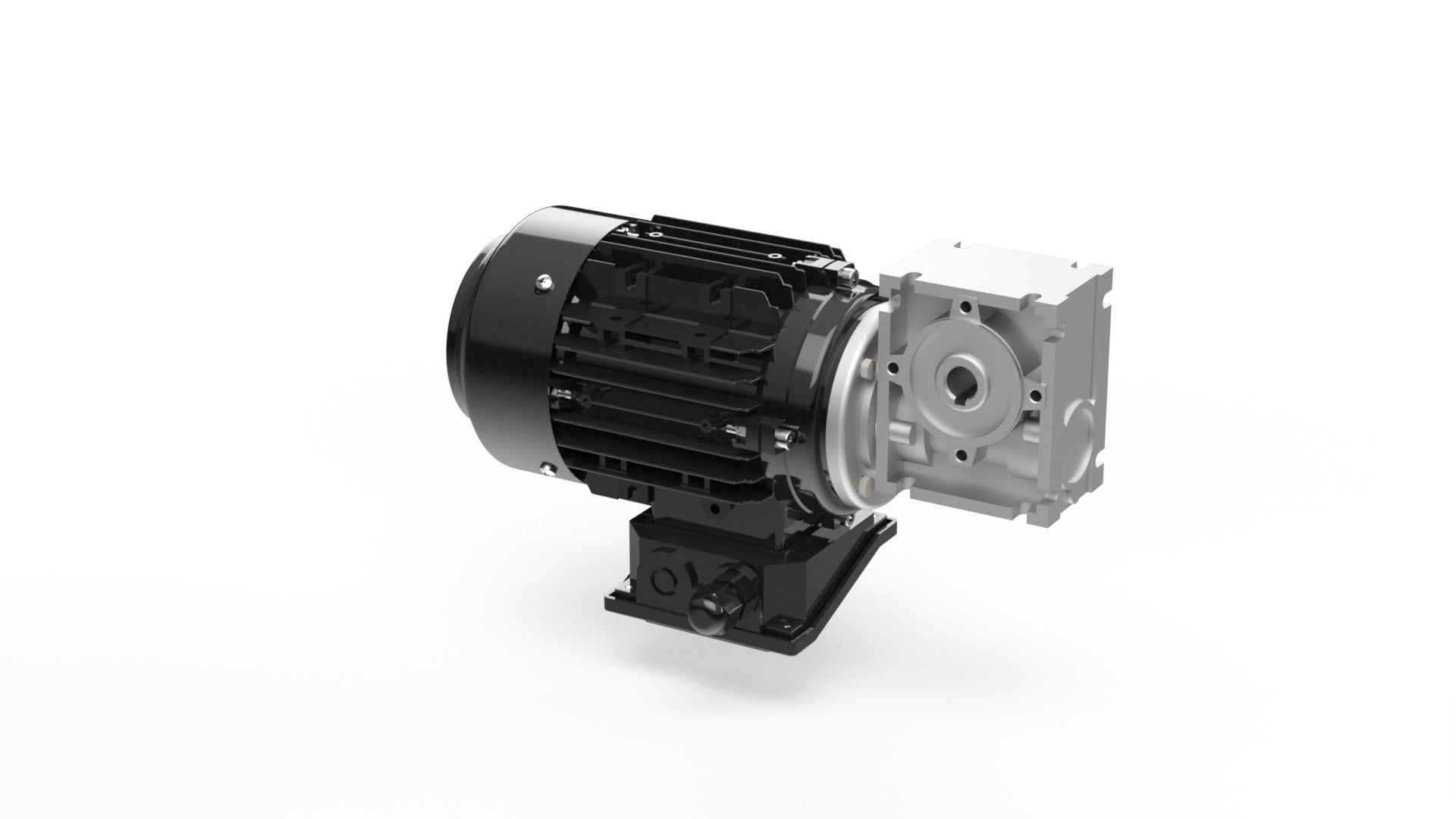

Motor Type: Worm gear drive with 4-pole 3-phase 230/400 VAC-50 Hz motor
Protection Class: IP55
Select columns
CAD Compare Get quote
Get quote 2 5 0.25 5.1 17.5 52 80 0.77
Get quote 2 7 0.25 6.8 23.3 60 60 0.77
Get quote 2 8 0.25 8.1 28 54 50 0.77
Get quote 2 10 0.37 10.2 35 68 40 1.01
Get quote 2 14 0.55 13.5 46.7 81 30 1.47
Get quote 2 16 0.55 16.2 56 71 25 1.47
Get quote 2 20 0.55 20.3 70 59 20 1.47
Get quote 2 27 0.55 27.1 93.3 46 15 1.47
Get quote 2 41 0.75 40.6 140 44 10 1.9
Get quote 2 54 0.75 54.1 186.7 34 7.5 1.9

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

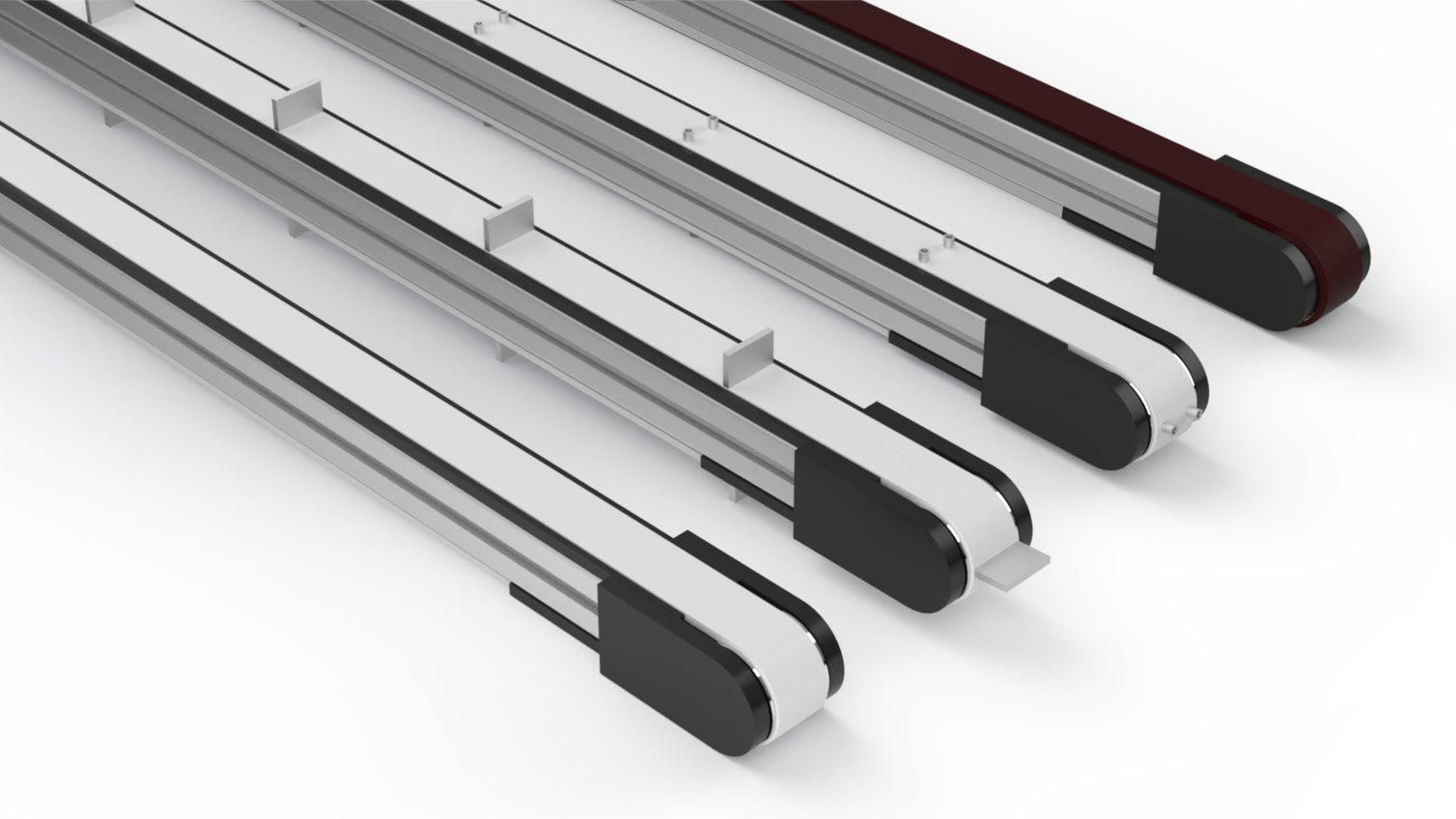

  • Belts
