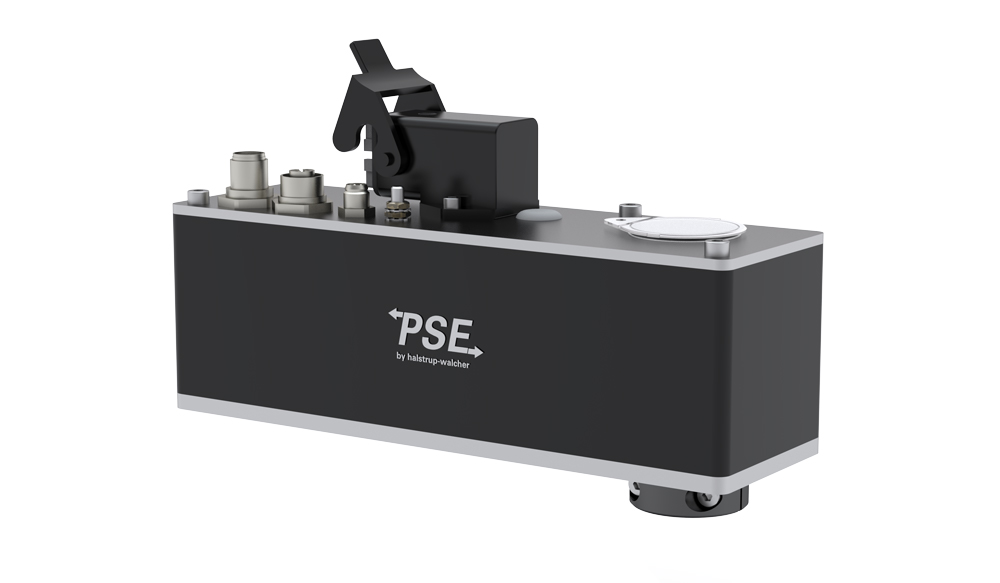

PSE 34 - Shaft 14 mm hollow

• Positioning system with 100 W power output
• For vertical applications with integrated brake (optional)
• Absolute measuring system
• Position control for direct connection to a control module
• Space-saving, compact design
• Galvanically separated supply voltages between control and motor and bus
• Durable EC-motor
• Extremely accurate positioning due to measurement of the position at the output side
• Bus interfaces simplify start-up and wiring complexity
• Address may be set using the bus or an address switch (not for IO-Link)
• Baud rate set via switch
• Status messages retrievable via bus
• Partial safety function for STO (Safe Torque Off)

Dimensions in mm.

Product Information

Type: Horizontal

Nominal Torque (Nm): 10; 18

Nominal Speed (rpm): 60; 80

Nominal Voltage (V DC): 24 (± 10 %)

Nominal Current (A): 7.8

Output Shaft (mm): 14

Output Shaft Type: Hollow

BUS Communication: Can Open (CA); Profi Bus (DP); Device Net (DN); Modbus (MB); IO-Link (IO); ProfiNet (PN); Sercos (SE); EtherCat (EC); Ethernet IP (EI); PowerLink (PL)

Electrical connection: "Standard; with jog keys; 1 connector Y-encoded or 1 connector Y-encoded with jog keys"

Protection Class: IP65

Motor: EC-motor

Supply Voltage: 24 V DC ± 10 % galvanically separated between control and motor and bus

Measurement System: Absolute, optical-magnetic

Accuracy: ± 0.9°

Intermittence: 20% (basis time 300 s)

Manual Adjustment: Standard

Brake: Optional (friction brake)

CAD-file_PSE34.zip

PSE-PSS-PSW_Order_Codes.pdf

Safety-manual_PSx3xx-STO.pdf
