Magnetic field sensors

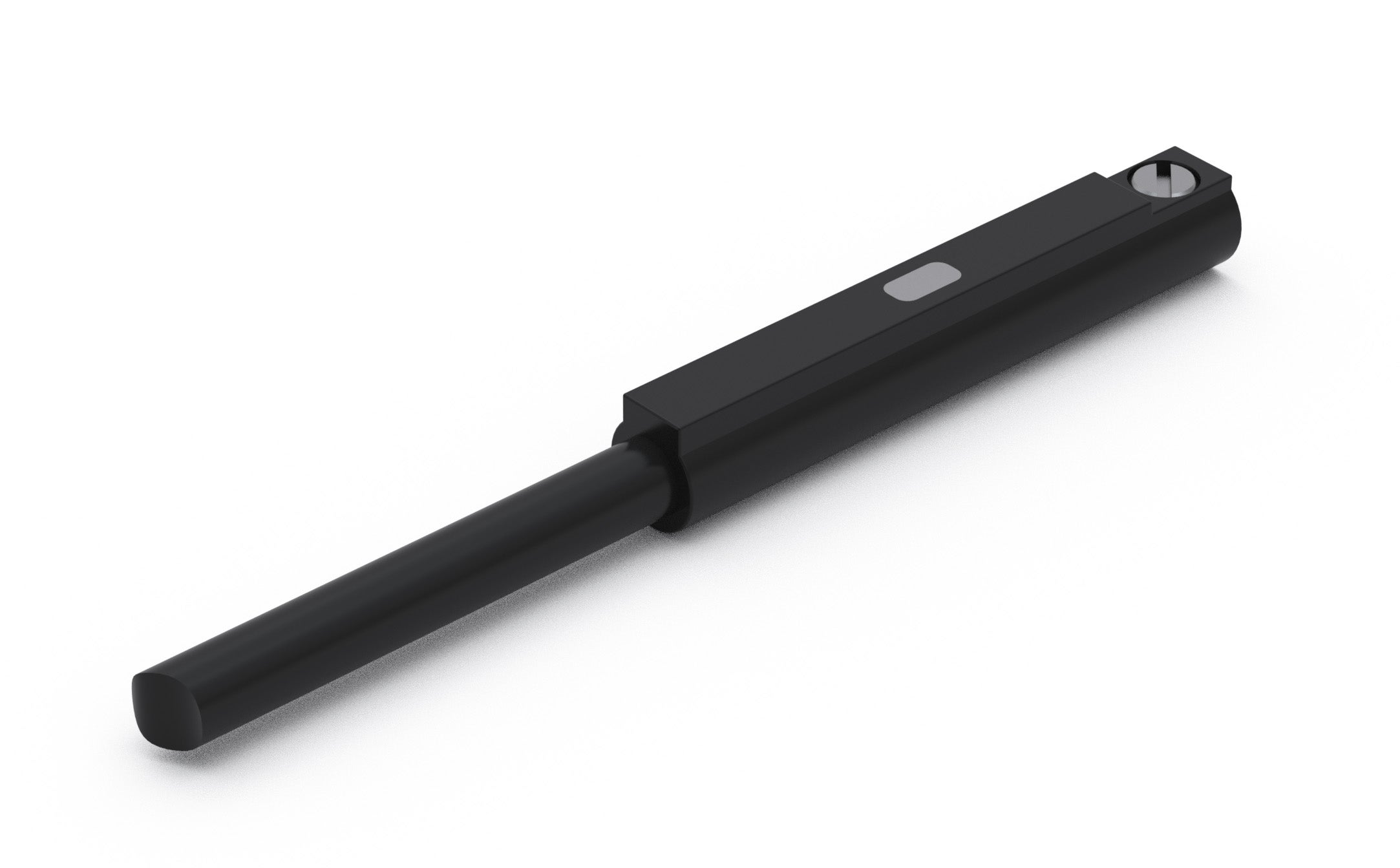

Magnetic field sensors can be mounted using the slot for the magnetic field sensor, placed on both sides of the MGBS / MGTB profile.
Dimensions in mm.
Read more
Dimensions in mm.
Product Information
Function principle: Magnetic
Switching function: NC normally close ; NO normally open
Wiring method: 3-wire type
Sensor Type: PNP current sourcing
Operating Voltage (V DC): 5 ~ 30
Max. Switching Current (mA): 200
Contact rating: 6 W max.
Voltage drop: 0,5 V @ 200 mA max.
Current consumption: 6 mA @ 24 V DC max.
Max. Leakage Current (mA): 0,01
Operating Frequency (Hz): 1000 max.
Ambient Temperature (°C): –10 ~ +70
Shock/vibration: 50 G / 9 G
Protection Class: IP67
LED indicator: Green
Electrical connection: M8, 3-pin
Extension cable: Energy chain compliant
Cable (Diameter, Material, Length): ∅2,8 mm, PUR, 150 mm
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Type | Compatible with | Length (m) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | - | MGBS/MGTB | - | ||||
|
|
|
2 | - | MGBS/MGTB | - | ||||
|
|
|

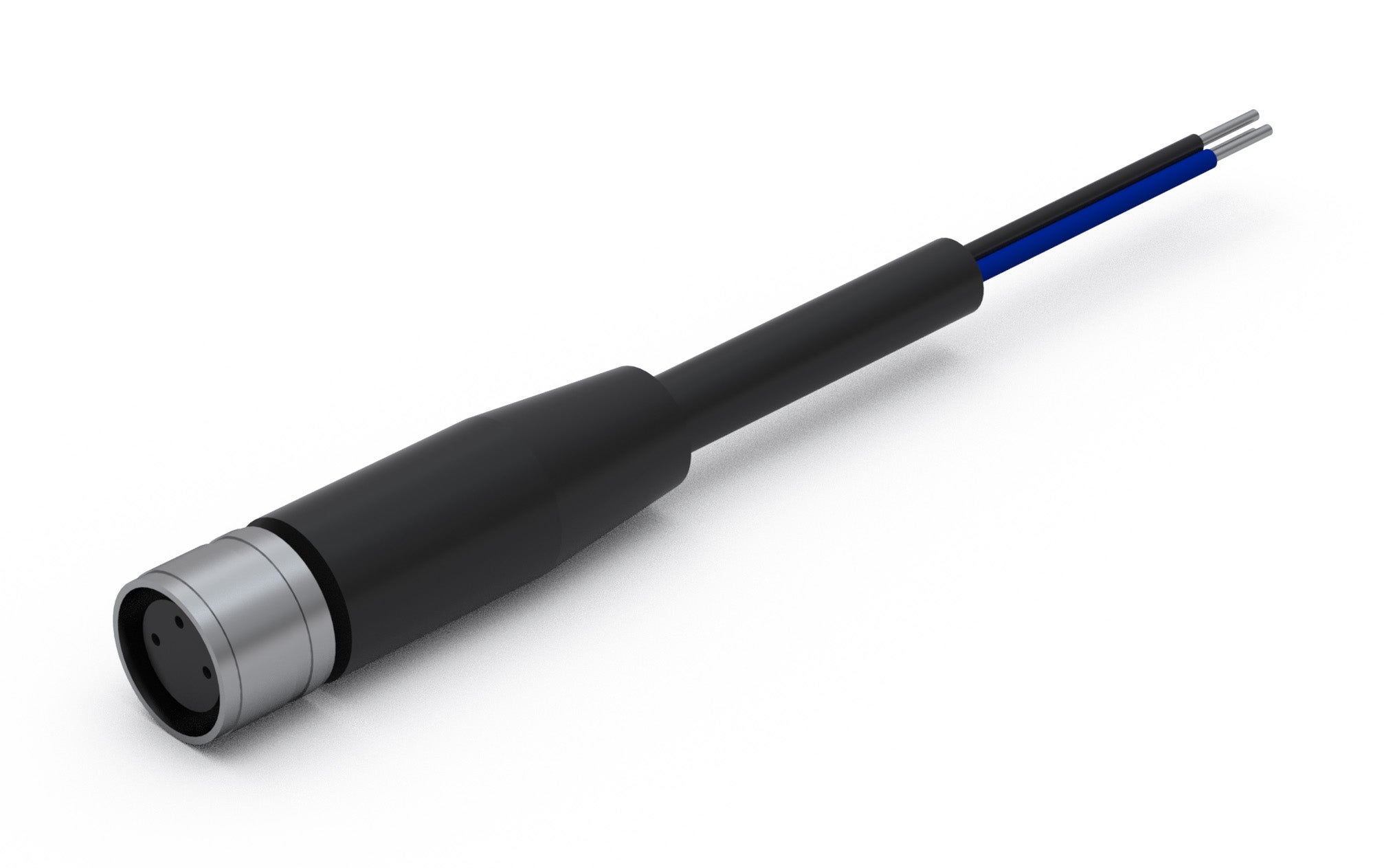

2 | Straight connector extension cable | SMO 40 TP K NC/SMO 40 TP K NO | 2 | ||||
|
|
|
2 | Straight connector extension cable | SMO 40 TP K NC/SMO 40 TP K NO | 5 | ||||
|
|
|

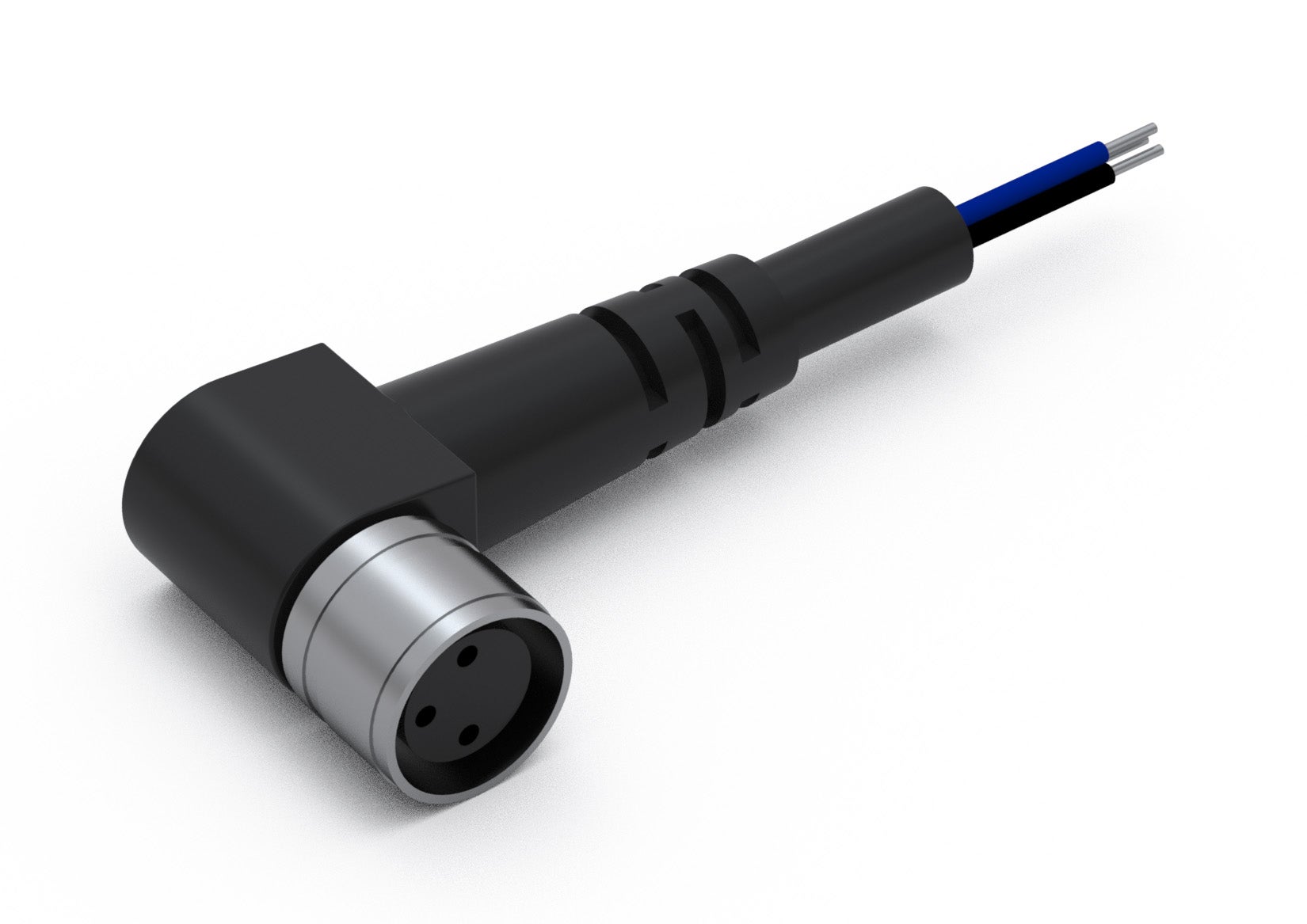

2 | Angled connector extension cable | SMO 40 TP K NC/SMO 40 TP K NO | 2 | ||||
|
|
|
2 | Angled connector extension cable | SMO 40 TP K NC/SMO 40 TP K NO | 5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
