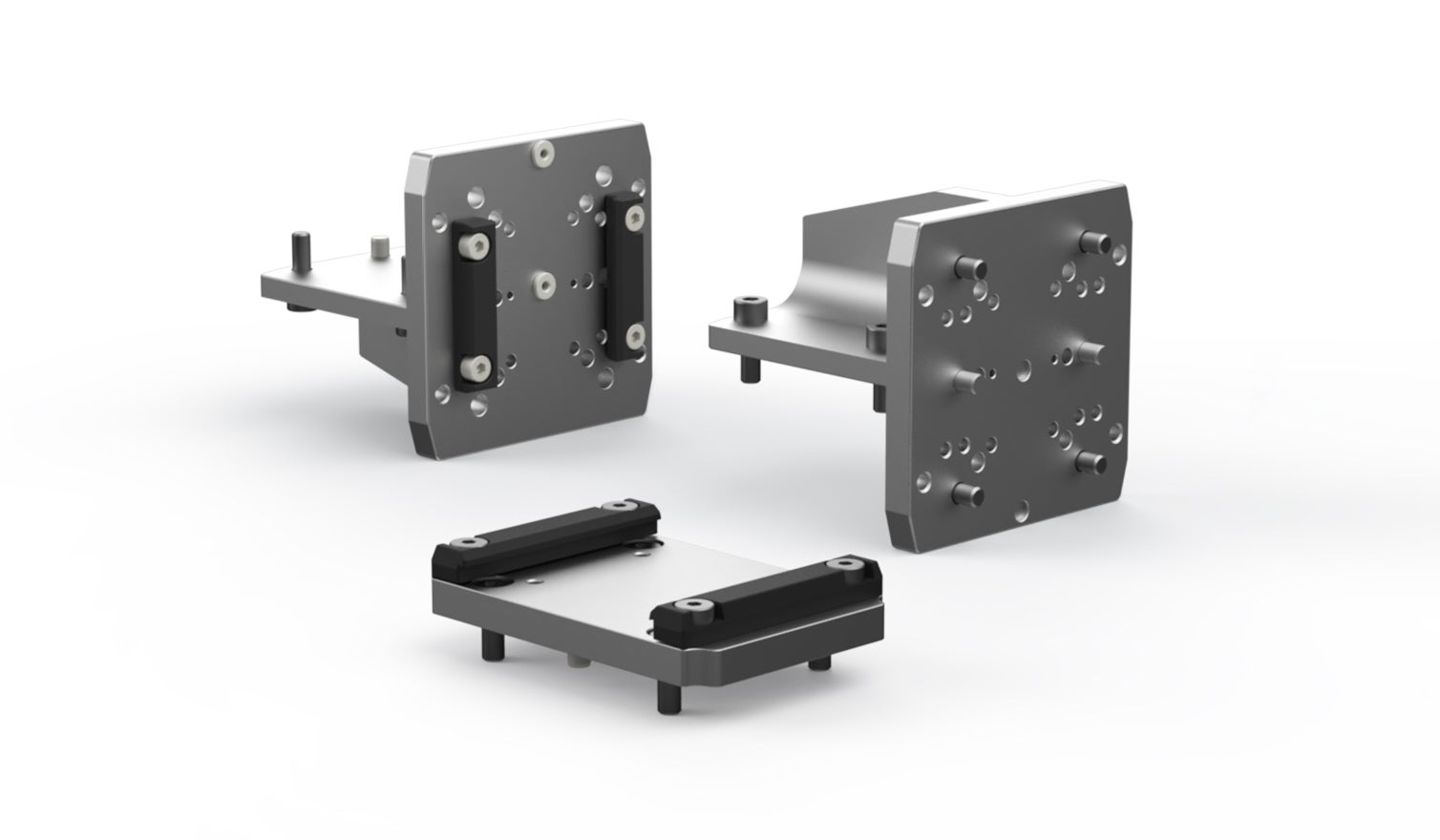

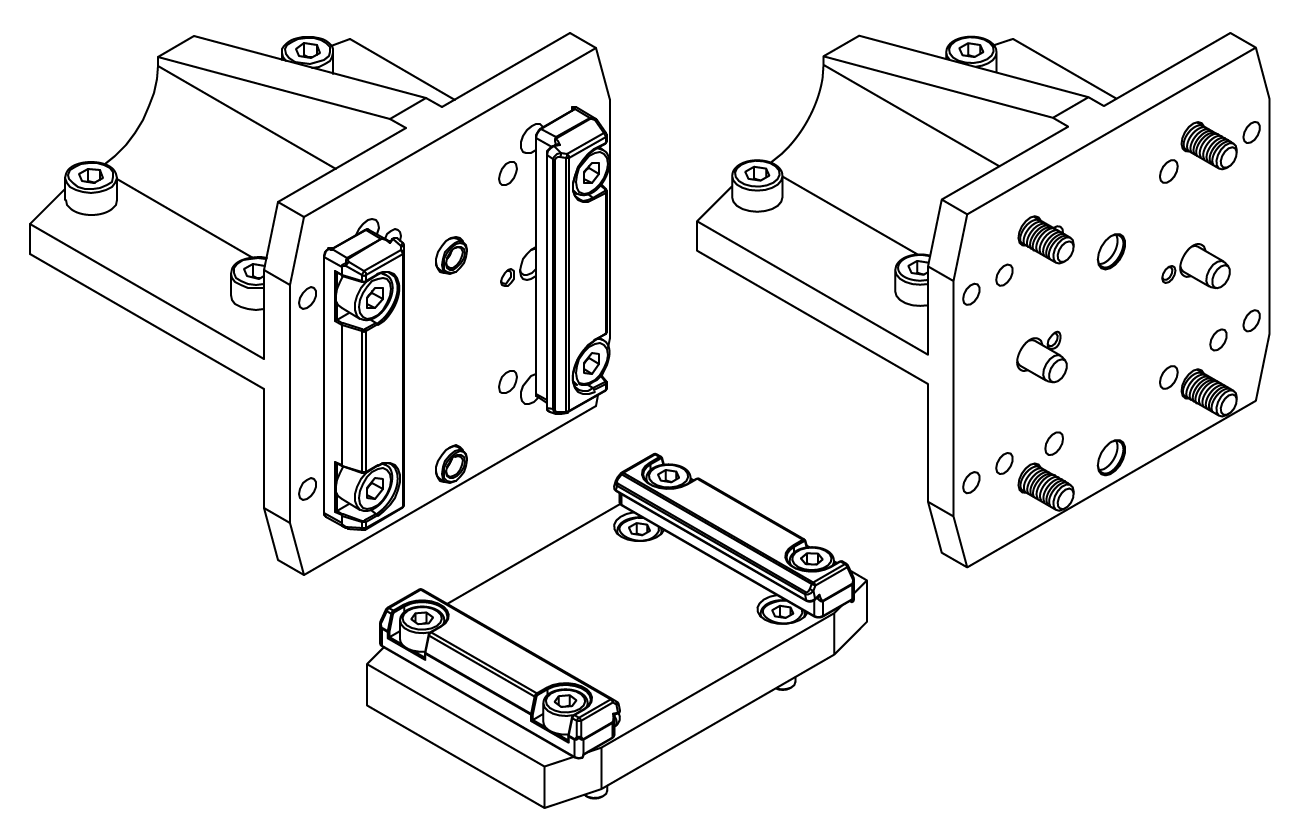

Connection plates

Mini linear units MGBS and MGTB can be mounted to one another using the standard connection plates CP. The standard connection plates support mounting with clamps (profile to carriage) or with screws (carriage to carriage). Mounting of the mini electric cylinders MCE or the mini electric sliders MSCE is also possible.

Components needed for mounting (i.e.: screws, clamping fixtures, centering rings) are included.

Dimensions in mm.

Download PDF (all data) code.product.loadingpdf

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Lead Time *	Compatible with	Mass (kg)	Mounting	X-Axis	Y-Axis	Z-Axis
CP MG32 XY MG32 KPL - 110994	Get quote	2	MGBS/MGTB 32	0.057	Carriage-profile	MGBS/MGTB 32	MGBS/MGTB 32	-
CP MG45 XY MG45 KPL - 111005	Get quote	2	MGBS/MGTB 45	0.115	Carriage-profile	MGBS/MGTB 45	MGBS/MGTB 45	-
CP MG60 XY MG32 KPL - 112563	Get quote	2	MGBS/MGTB 32, 60	0.165	Carriage-profile	MGBS/MGTB 60	MGBS/MGTB 32	-
CP MG60 XY MG60 KPL - 112562	Get quote	2	MGBS/MGTB 60	0.191	Carriage-profile	MGBS/MGTB 60	MGBS/MGTB 60	-
CP MG32 XZ MG32 KPL - 111001	Get quote	2	MGBS/MGTB 32	0.095	Carriage-profile	MGBS/MGTB 32	-	MGBS/MGTB 32
CP MG45 XZ MG32 KPL - 111006	Get quote	2	MGBS/MGTB 32, 45	0.161	Carriage-profile	MGBS/MGTB 45	-	MGBS/MGTB 32
CP MG45 XZ MG45 KPL - 111008	Get quote	2	MGBS/MGTB 45	0.161	Carriage-profile	MGBS/MGTB 45	-	MGBS/MGTB 45
CP MG60 XZ MG32 KPL - 112569	Get quote	2	MGBS/MGTB 32, 60	0.320	Carriage-profile	MGBS/MGTB 60	-	MGBS/MGTB 32
CP MG60 XZ MG45 KPL - 112568	Get quote	2	MGBS/MGTB 45, 60	0.320	Carriage-profile	MGBS/MGTB 60	-	MGBS/MGTB 45
CP MG60 XZ MG60 KPL - 112567	Get quote	2	MGBS/MGTB 60	0.346	Carriage-profile	MGBS/MGTB 60	-	MGBS/MGTB 60
CP MG32 XZ MSCE25 KPL - 111003	Get quote	2	MGBS/MGTB 32, MCE/MSCE 25	0.095	Carriage-profile	MGBS/MGTB 32	-	MCE/MSCE 25
CP MG32 XZ MSCE32 KPL - 111004	Get quote	2	MGBS/MGTB 32, MCE/MSCE 32	0.095	Carriage-profile	MGBS/MGTB 32	-	MCE/MSCE 32
CP MG45 XZ MSCE32 KPL - 111010	Get quote	2	MGBS/MGTB 32, MCE/MSCE 32	0.162	Carriage-profile	MGBS/MGTB 45	-	MCE/MSCE 32
CP MG45 XZ MSCE45 KPL - 111011	Get quote	2	MGBS/MGTB 32, MCE/MSCE 45	0.162	Carriage-profile	MGBS/MGTB 45	-	MCE/MSCE 45
CP MG60 XZ MSCE32 KPL - 112570	Get quote	2	MGBS/MGTB 32, MCE/MSCE 32	0.320	Carriage-profile	MGBS/MGTB 60	-	MCE/MSCE 32
CP MG60 XZ MSCE45 KPL - 112571	Get quote	2	MGBS/MGTB 32, MCE/MSCE 45	0.321	Carriage-profile	MGBS/MGTB 60	-	MCE/MSCE 45
CP MG32 XZ MG32Z KPL - 111002	Get quote	2	MGBS/MGTB 32	0.071	Carriage-carriage	MGBS/MGTB 32	-	MGBS/MGTB 32
CP MG45 XZ MG32Z KPL - 111007	Get quote	2	MGBS/MGTB 32, 45	0.126	Carriage-carriage	MGBS/MGTB 45	-	MGBS/MGTB 32
CP MG45 XZ MG45Z KPL - 111009	Get quote	2	MGBS/MGTB 45	0.131	Carriage-carriage	MGBS/MGTB 45	-	MGBS/MGTB 45
CP MG60 XZ MG32Z KPL - 112566	Get quote	2	MGBS/MGTB 32, 60	0.285	Carriage-carriage	MGBS/MGTB 60	-	MGBS/MGTB 32
CP MG60 XZ MG45Z KPL - 112565	Get quote	2	MGBS/MGTB 45, 60	0.291	Carriage-carriage	MGBS/MGTB 60	-	MGBS/MGTB 45
CP MG60 XZ MG60Z KPL - 112564	Get quote	2	MGBS/MGTB 60	0.297	Carriage-carriage	MGBS/MGTB 60	-	MGBS/MGTB 60

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation	L1
CP MG32 XY MG32 KPL - 110994	Get quote	8.0
CP MG45 XY MG45 KPL - 111005	Get quote	8.0
CP MG60 XY MG32 KPL - 112563	Get quote	8.0
CP MG60 XY MG60 KPL - 112562	Get quote	8.0
CP MG32 XZ MG32 KPL - 111001	Get quote	26
CP MG45 XZ MG32 KPL - 111006	Get quote	32
CP MG45 XZ MG45 KPL - 111008	Get quote	32
CP MG60 XZ MG32 KPL - 112569	Get quote	45
CP MG60 XZ MG45 KPL - 112568	Get quote	45
CP MG60 XZ MG60 KPL - 112567	Get quote	45
CP MG32 XZ MSCE25 KPL - 111003	Get quote	26
CP MG32 XZ MSCE32 KPL - 111004	Get quote	26
CP MG45 XZ MSCE32 KPL - 111010	Get quote	32
CP MG45 XZ MSCE45 KPL - 111011	Get quote	32
CP MG60 XZ MSCE32 KPL - 112570	Get quote	45
CP MG60 XZ MSCE45 KPL - 112571	Get quote	45
CP MG32 XZ MG32Z KPL - 111002	Get quote	26
CP MG45 XZ MG32Z KPL - 111007	Get quote	32
CP MG45 XZ MG45Z KPL - 111009	Get quote	32
CP MG60 XZ MG32Z KPL - 112566	Get quote	45
CP MG60 XZ MG45Z KPL - 112565	Get quote	45
CP MG60 XZ MG60Z KPL - 112564	Get quote	45
